Empower Your Ultimate RV Adventure
Timeusb group 24 deep cycle battery is compatible with all types of RVs on the market and equipped with Grade A LiFePO4 cells, supporting 4000+ cycles life and your energy needs for over 10 years.
.jpg)
Stable, Long-lasting Performance
Timeusb 12V 100Ah group 24 battery features Automotive Grade-A LiFePO4 cells, supporting an impressive cycle life of 4000+ and a 10-year lifespan. Built-in robust 100A BMS offers comprehensive safety features including overcharge, over-discharge, overcurrent, short circuit, and high-temp protection.
Recharge Anytime, Anywhere
This group 24 battery offers flexible, convenient 3 charging solutions, including compatibility with 12V DC-DC chargers, solar panels via an MPPT controller, generators with AC-DC chargers.
Up To 20.48 kW Massive Power Expansion
Timeusb 12V 100Ah lithium battery can support up to 4 pcs in series or 4 pcs in parallel. Experience a maximum energy of 20.48kWh with 16 x 12V 100Ah LiFePO4 batteries in 4P4S, ensuring an extended journey.
Compatible With All Types Of RVs On The Market

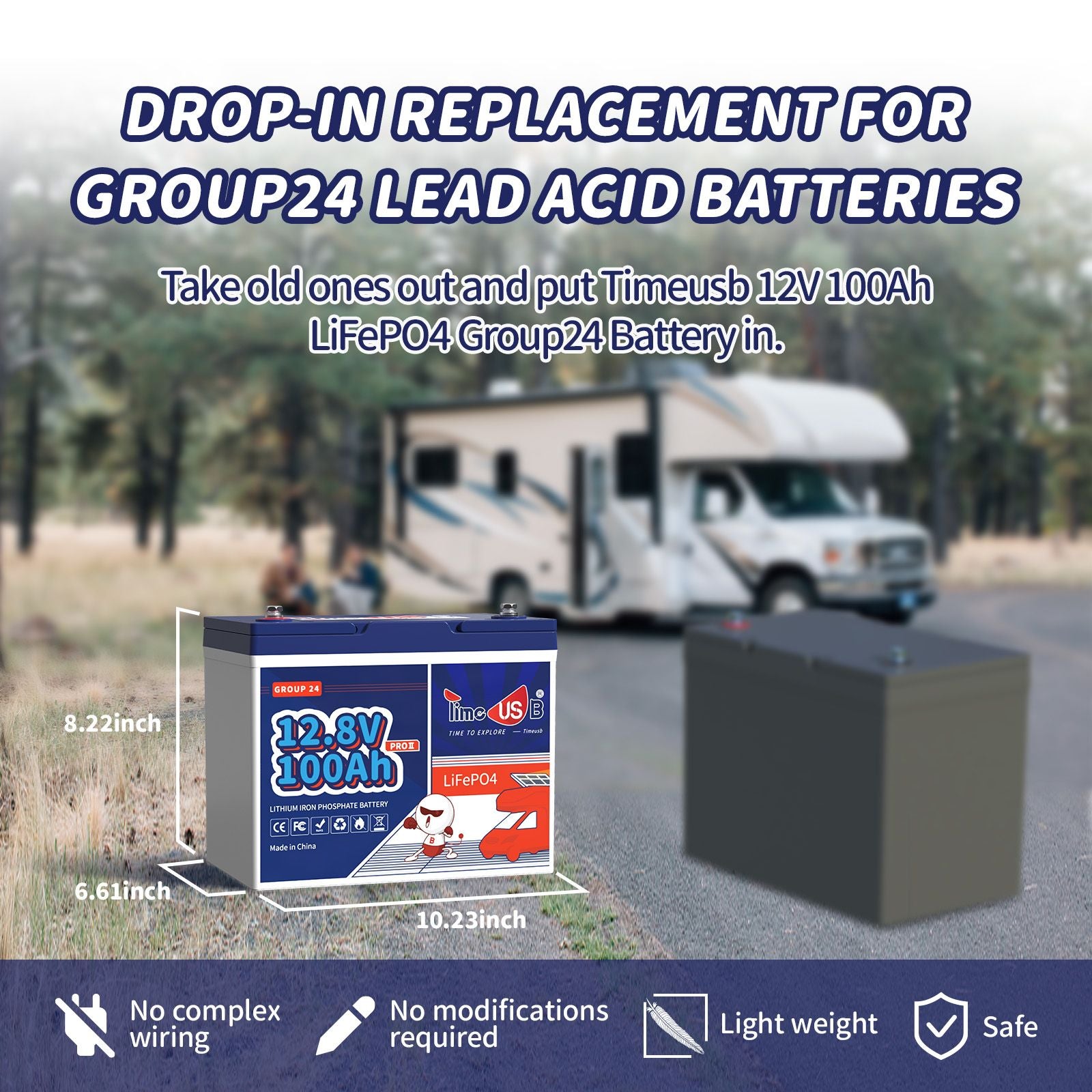

Timeusb 12V 100Ah group 24 deep cycle battery was built based on the BCI battery size standard "Group 24", which is globally compatible with all types of RVs on the market. Easy to replace the group 24 AGM battery.
.jpg)
Versatile Power Solutions For All Applications
This 12V 100Ah lithium battery with a smaller size is a versatile power solution suitable for various application scenarios. Ideal for outdoor camping and indoor installation!
PACKAGE CONTENTS:
1 x 12V 100Ah Group 24 LiFePO4 Battery
1 x Quick Start Guide
1 x Product Manual
2 x M8 Terminal Bolts
2 x Plastic Nut Caps
2 x Flat Washers
ATTENTION:
1. A charger is not included.
2. If a bolt is directly fastened or the thickness of the harness OT terminal piece used is less than 2 mm, add a flat washer for fastening.
NOTE:
This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads. If you have any questions, please provide a specific product link, and we will check compatibility for you.
Technical Details
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P (12V 400Ah) / 4S (48V 100Ah) / 4P4S (48V 400Ah)
Internal Resistance：
≤40mΩ
Certifications：
FCC/UL1973/CE/RoHS
Battery Box：
Group 24
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Surge Discharge Current (1 Second)：
400A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)

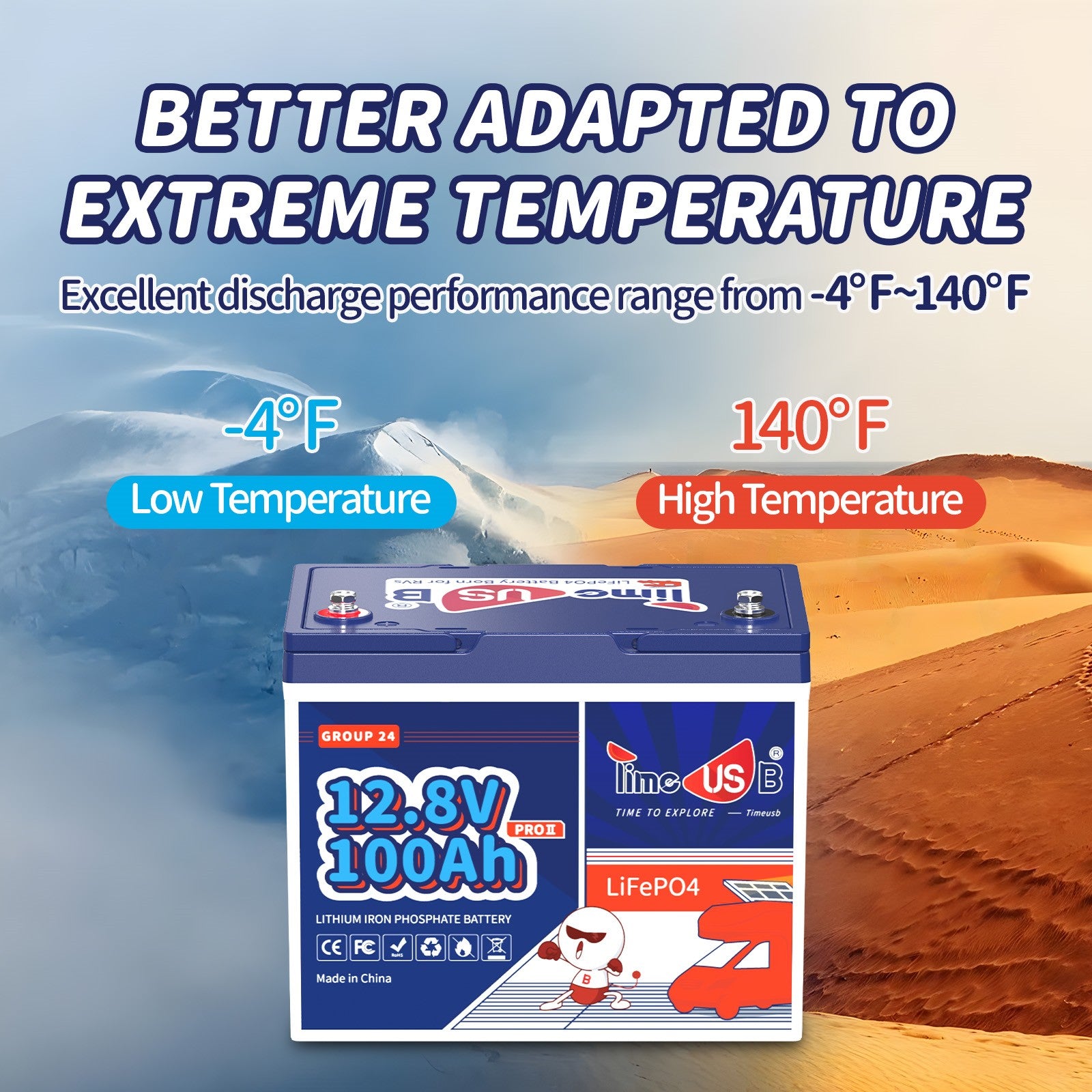

Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
Low-Temperature Protection：
N/A
Low-Temperature Charging Protection Auto Recovery：
N/A
OTHERS
Terminals：
M8 bolts
Weight Approx.：
21 lbs
Size：
L10.23 x W6.61 x H8.22 in.
Housing Material：
ABS
Protection Class：
IP65
Product Comparison
Battery Box
Surge Discharge Current (1 Second)
Low-Temperature Protection
Low-Temperature Charging Protection Auto Recovery
Weight Approx.
Size
【🎄Christmas Sale】Timeusb 12V 100Ah Group 24 LiFePO4 Battery
$169.99
$359.99
Group 24
400A
N/A
N/A
21 lbs
L10.23 x W6.61 x H8.22 in.

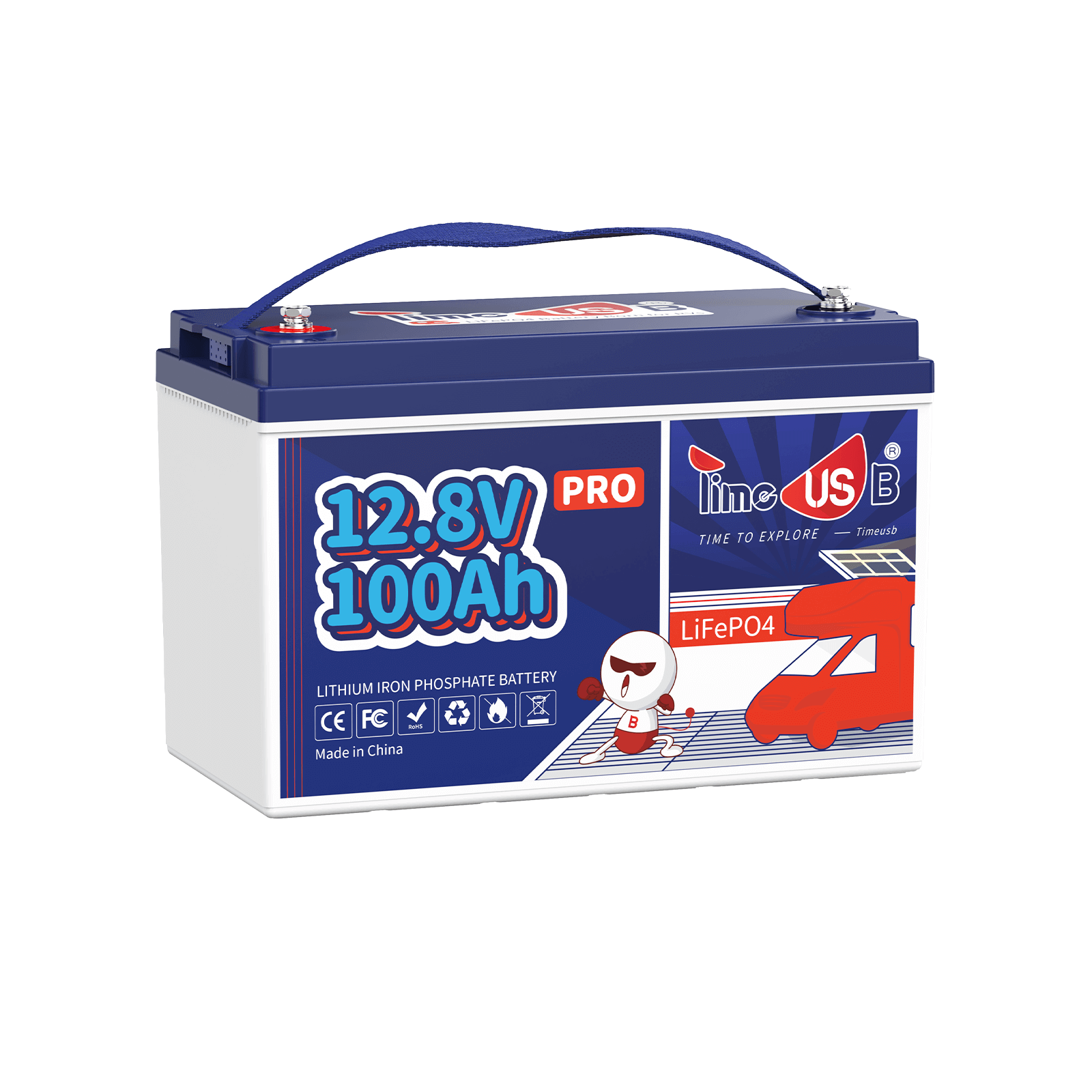

【🎄Christmas Sale】Timeusb 12V 100Ah LiFePO4 Battery Pro
$169.99
$353.99
Group 31
400A
N/A
N/A
22.05 lbs
L13 x W6.77 x H8.5 in.
【🎄Christmas Sale】Timeusb 12V 100Ah Trolling Motor Battery with Low-Temperature Protection
$169.99
$399.98
Group 31
500A
32℉ (0℃)
41℉ (5℃)
22.13 lbs
L13 x W6.77 x H8.5 in.
FAQs
Q: Can I use Timeusb LiFePO4 Lithium batteries as starting batteries?
A:
Timeusb LiFePO4 batteries are designed for energy storage and are not suitable for use as starting batteries. They do not have the Cold Cranking Amps (CCA) necessary for starting applications.
For more information, please see the article "Deep Cycle VS Starting Battery."
Q: What is a Group 24 battery?
A:
Group 24 batteries are designated by the BCI Group label, have a specific set of dimensions at L10.5 x W6.1875 x H8.875 inches, are suitable for vehicles, backup power systems, and medical equipment, and are frequently utilized as deep cycle batteries rather than for starting engines.
Timeusb deep cycle group 24 lithium battery measures L10.23 x W6.61 x H8.22 inches. It is a perfect replacement for group 24 batteries.
Q: Can I connect Timeusb group 24 and group 31 lithium battery (12V 100Ah pro) in series or parallel?
A:
No, you should not connect Timeusb Group 24 and Group 31 lithium batteries in series or parallel. Connecting batteries with different sizes, capacities, or voltages can cause imbalanced charging and discharging, potentially damaging the batteries and shortening their lifespan. Always use batteries of the same type, capacity, and voltage for series or parallel connections.
Also the Battery Management Systems (BMS) for Group 24 and Group 31 batteries are usually different. Each BMS is customized to match the battery's capacity, size, and intended use. Consequently, the BMS for a Group 24 battery is designed to handle its specific characteristics and performance requirements, while the BMS for a Group 31 battery is optimized for its particular needs. Always refer to the manufacturer's specifications to understand the differences between the BMS in various battery groups.
Read the article "Batteries in Series vs Parallel" to know about it.
Q: What are the Differences Between a Group 24 and Group 31 Battery?
A:
The primary difference between a Group 24 and Group 31 battery is their physical size. Group 24 batteries are typically smaller than Group 31 batteries.
Q: What is the Charge Temperature of 12V 100Ah Group 24 LiFePO4 Battery?
A:
The Charge Temperature of 12V 100Ah Group 24 LiFePO4 Battery is 32℉ to 122℉ (0℃ to 50℃). Charging below freezing can potentially damage the battery cells. It's recommended to charge the battery indoor.
