Reliable, Affordable, Dependable
Timeusb 12V 100Ah battery is manufactured by Automotive Grade LiFePO4 Cells with higher energy density and excellent self-discharge rate. 100% true capacity keeps you on the road for longer and with value.
All Round 100% BMS Protection
Our 12V 100Ah lithium battery has built-in 100A BMS, which protects it from overcharge, over-discharge, over-current, and short circuits. Safer and More durable.

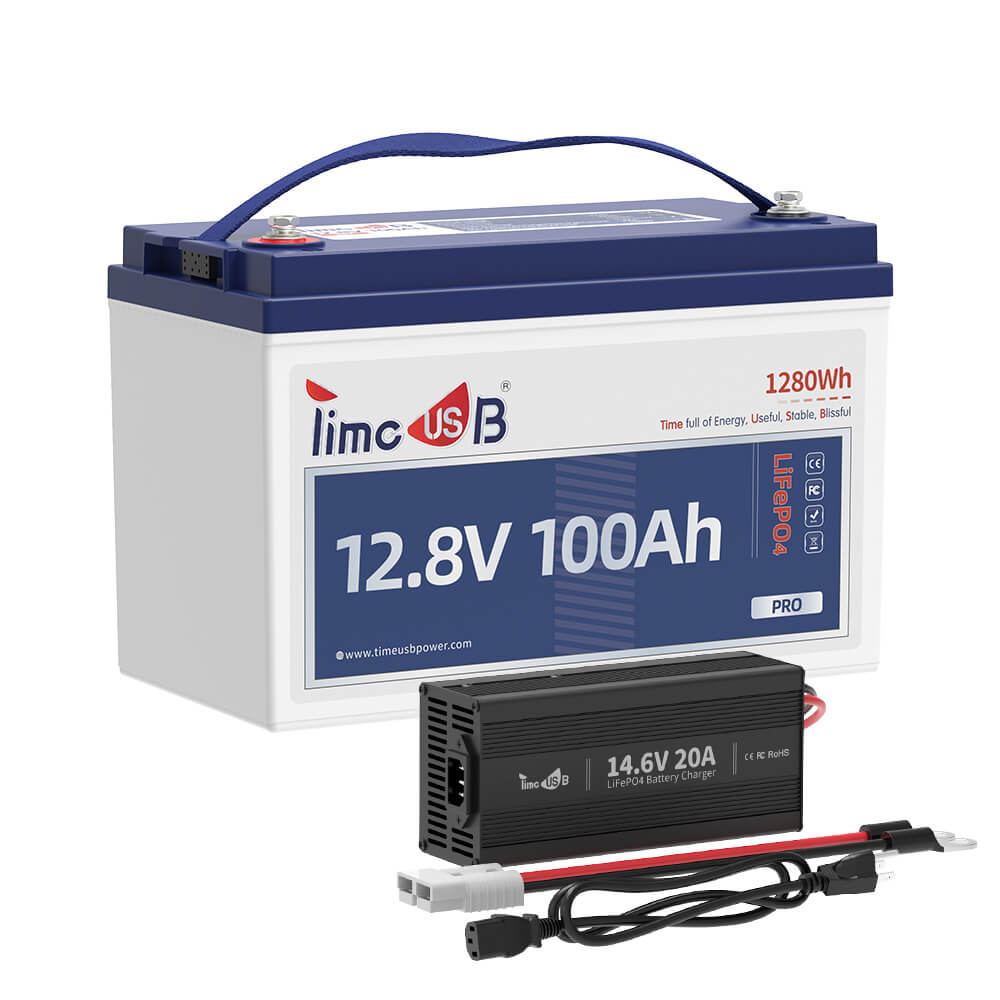

Faster, Safer, Smarter

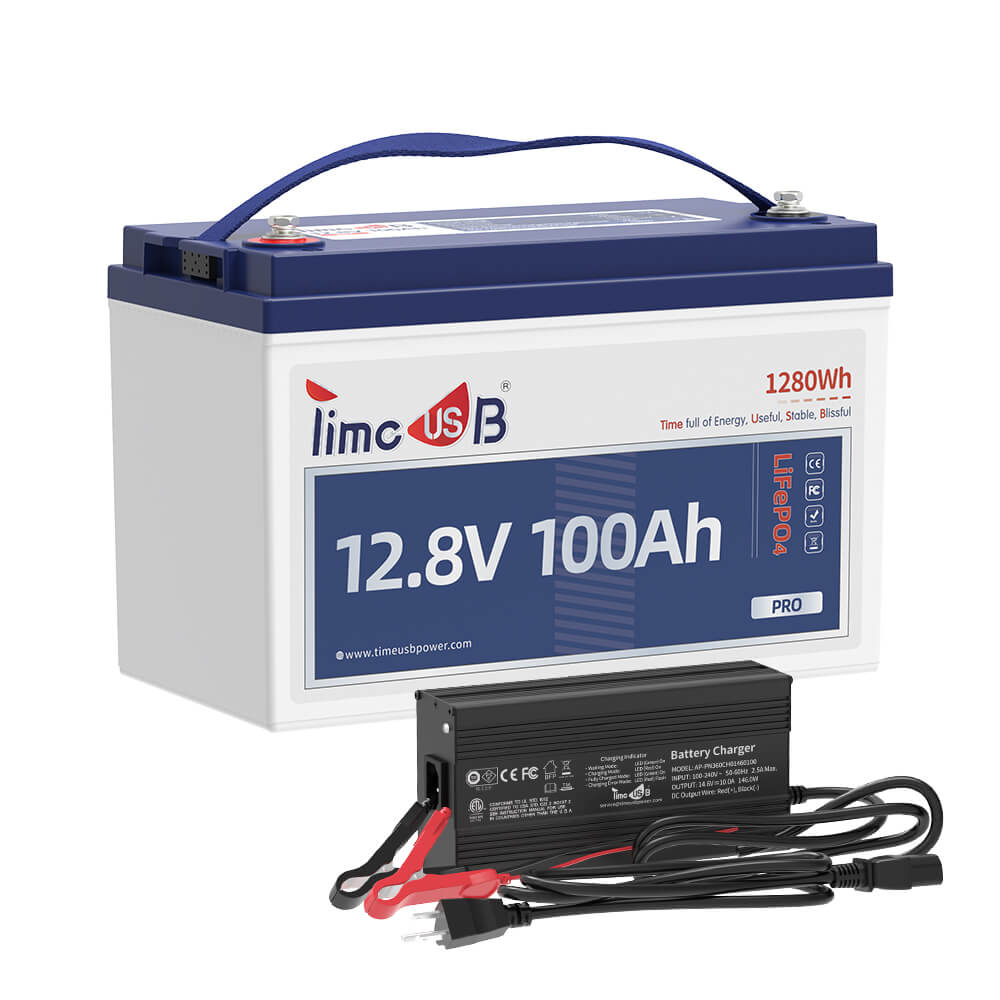

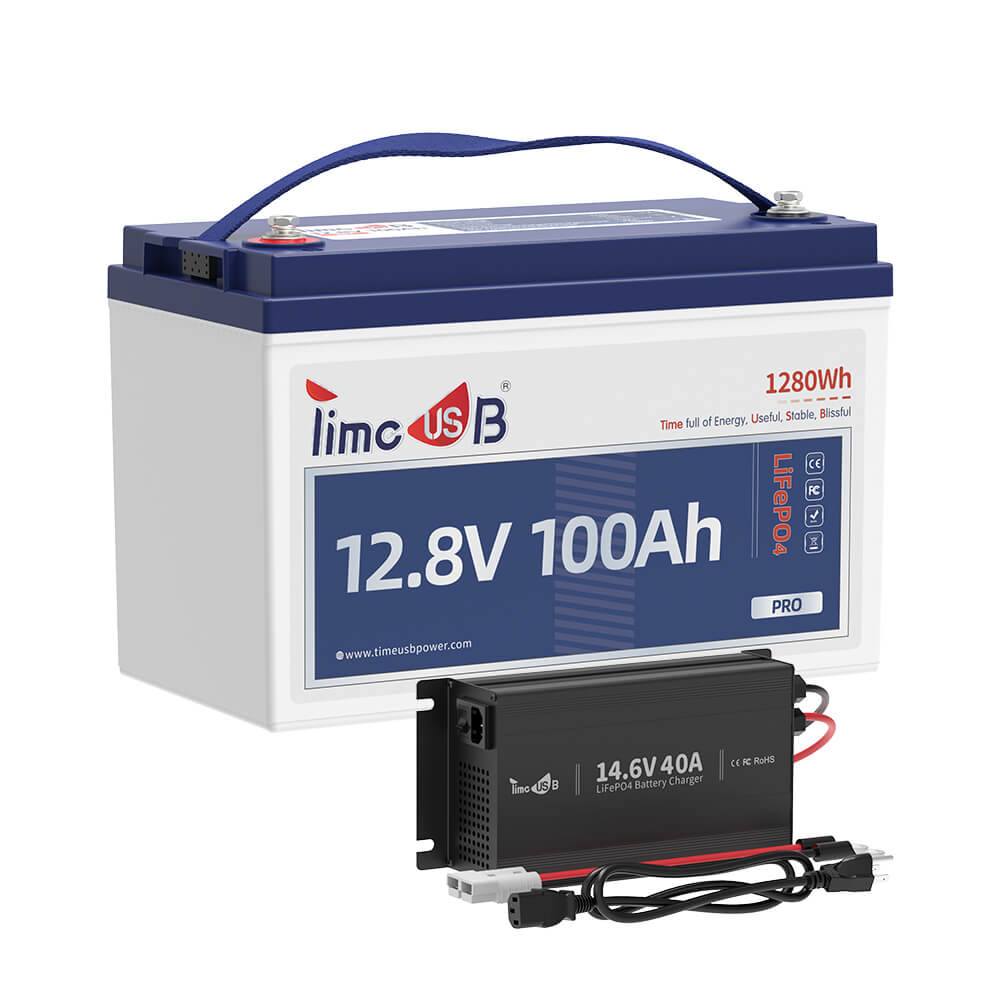

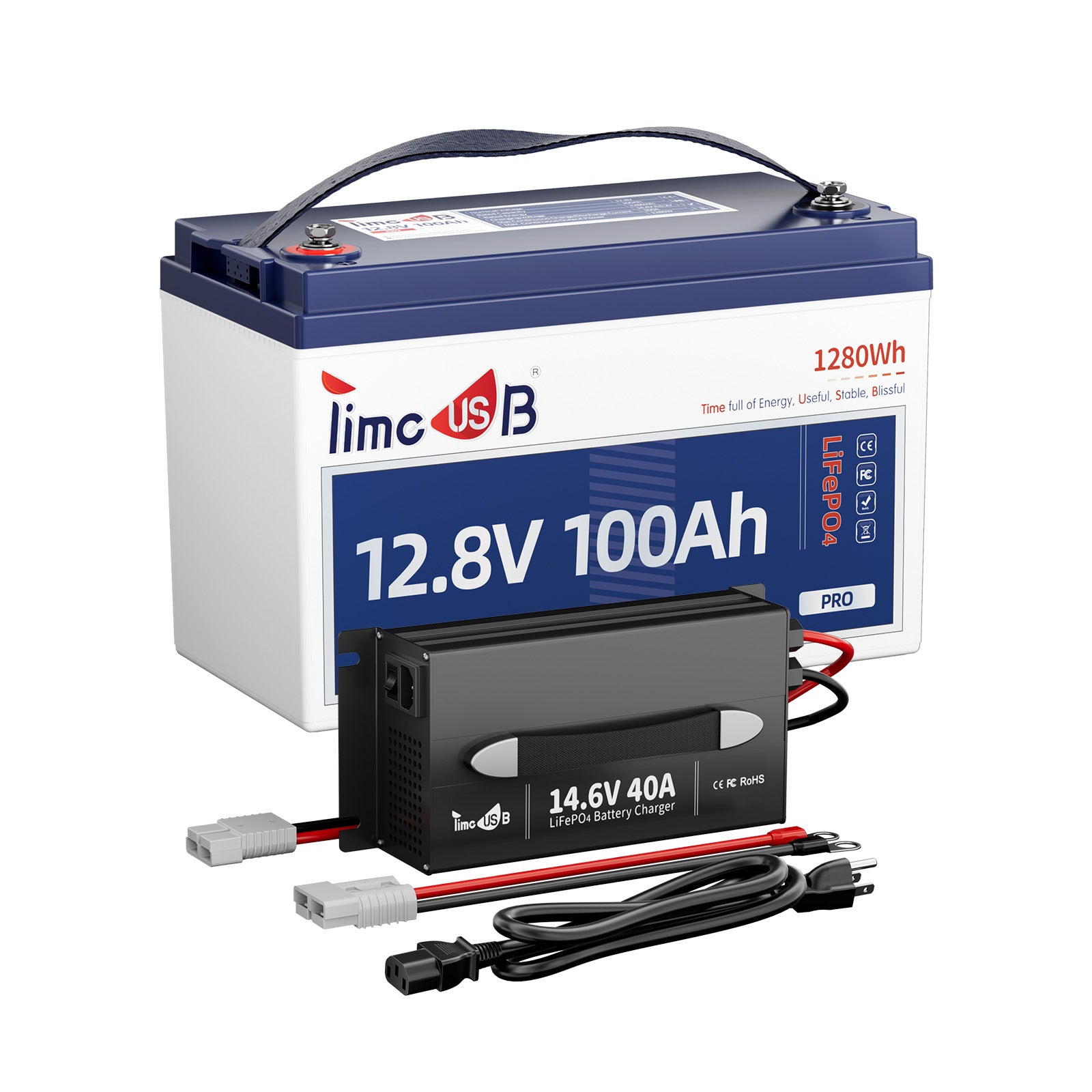

The Group 31 lithium battery can be charged quickly and safely using 2 Timeusb chargers, namely 14.6V 20A, and 14.6V 40A lithium-ion battery chargers.

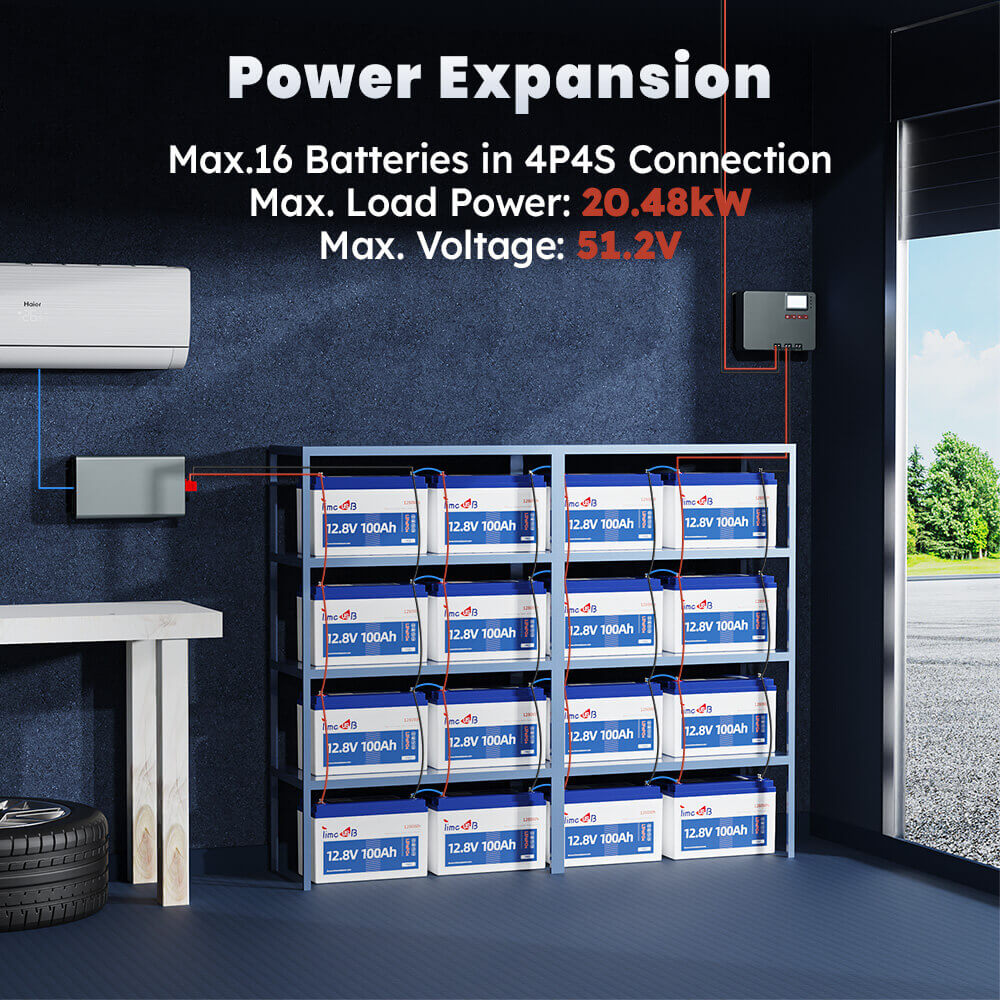

Expandable Power System Up To 20.48 kW
Timeusb 12V 100Ah lithium battery can support up to 4 pcs in series or 4 pcs in parallel, achieving a maximum of 20.48kWh energy and 20.48kW load power.
Versatile for Your Needs
Timeusb 12V 100Ah Pro LiFePO4 lithium battery with 1280W Load Power can support common RV/home applications, achieving energy freedom and giving everyone a quality life.
Charge Your Journey Anytime, Anywhere
The Timeusb 12V 100Ah Battery offers flexible, convenient 4 charging solutions, including compatibility with 12V LiFePO4 battery chargers, solar panels via an MPPT controller, generators with AC-DC chargers, and alternators with DC-DC chargers.
Empower Your Versatile Adventure
With an ultra-compact and lightweight design, Timeusb lithium batteries are easy to carry, making them ideal for use anytime, anywhere. Perfect for diverse scenarios, RVs, camping, solar home, backup energy, trolling motor, marine, and off-grid applications.
PACKAGE CONTENTS:
1 x 12V 100Ah Pro LiFePO4 Battery
1 x Product Manual
2 x M8 Terminal Bolts
2 x Plastic Nut Caps
2 x Flat Washers
ATTENTION:
1. A charger is not included.
2. If a bolt is directly fastened or the thickness of the harness OT terminal piece used is less than 2 mm, add a flat washer for fastening.
NOTE:
This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads. If you have any questions, please provide a specific product link, and we will check compatibility for you.
Technical Details
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years

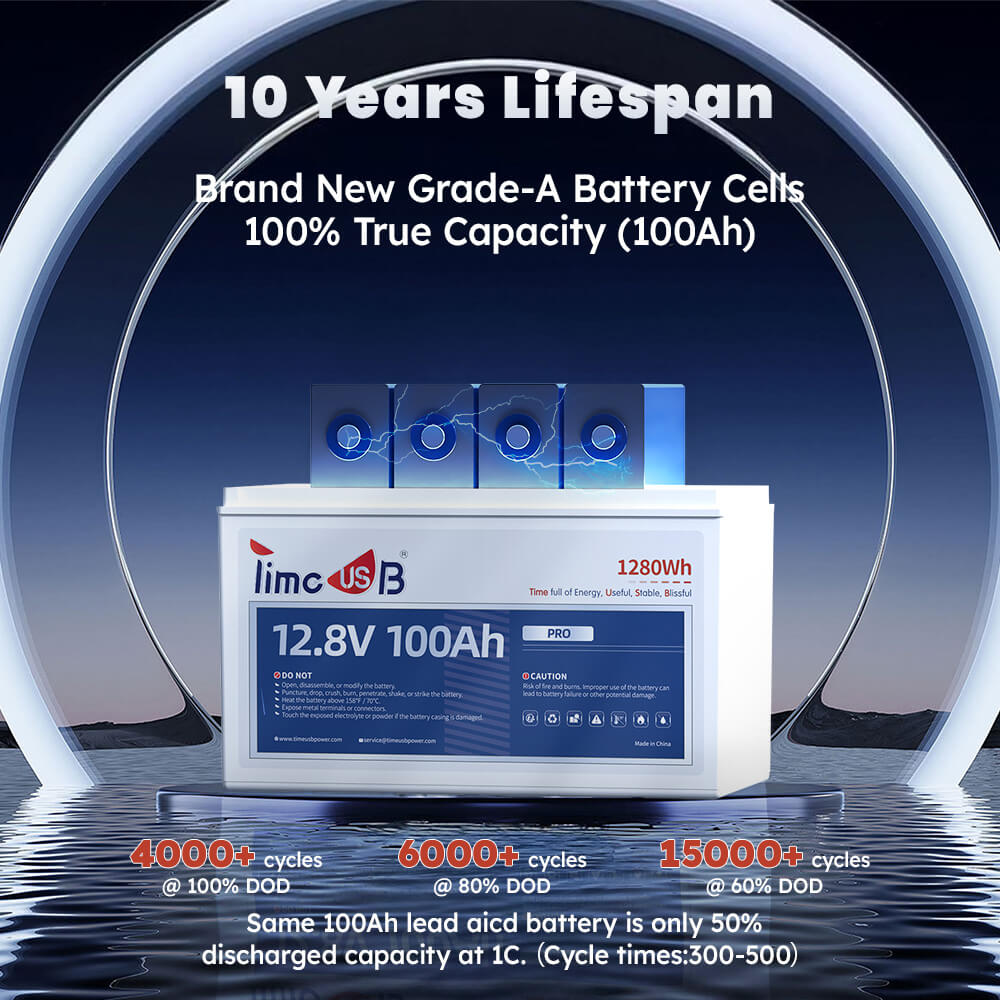

Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P (12V 400Ah) / 4S (48V 100Ah) / 4P4S (48V 400Ah)
Internal Resistance：
≤40mΩ
Certifications：
FCC/UL1973/CE/RoHS/PSE
Battery Box：
Group 31
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Surge Discharge Current (1 Second)：
400A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)
Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
Low-Temperature Protection：
N/A
Low-Temperature Charging Protection Auto Recovery：
N/A
OTHERS
Terminals：
M8 bolts
Weight Approx.：
23 lbs
Size：
L13 x W6.77 x H8.5 in.
Housing Material：
ABS
Protection Class：
IP65
Product Comparison
Battery Box
Surge Discharge Current (1 Second)
Low-Temperature Protection
Low-Temperature Charging Protection Auto Recovery
Weight Approx.
Size
【New Version, 🎄Christmas Sale】Timeusb 12V 100Ah Pro LiFePO4 Lithium Battery
$169.99
$353.99
Group 31
400A
N/A
N/A
23 lbs
L13 x W6.77 x H8.5 in.
【New Version, 🎄Christmas Sale】Timeusb 12V 100Ah Group 24 Deep Cycle Battery
$169.99
$359.99
Group 24
400A
N/A
N/A
21 lbs
L10.24 x W6.61 x H8.27 in.
【🎄Christmas Sale】Timeusb 12V 100Ah Trolling Motor Battery with Low-Temperature Protection
$169.99
$399.98
Group 31
500A
32℉ (0℃)
41℉ (5℃)
22.13 lbs
L13 x W6.77 x H8.5 in.
FAQs
Q: Can I use Timeusb LiFePO4 Lithium batteries as starting batteries?
A:
Timeusb LiFePO4 batteries are not meant to be used as starting batteries. They are specifically designed for energy storage and lack the Cold Cranking Amps (CCA) required for starting applications.For more information, please refer to the article "Deep Cycle VS Starting Battery."
Q: Can I use the Timeusb 12V 100Ah lithium battery for my trolling motor?
A:
Yes, the Timeusb 12V 100Ah Pro lithium-ion battery is compatible with trolling motors with a thrust between 30-70 lbs. If you have any additional questions, we can offer recommendations based on your specific needs.

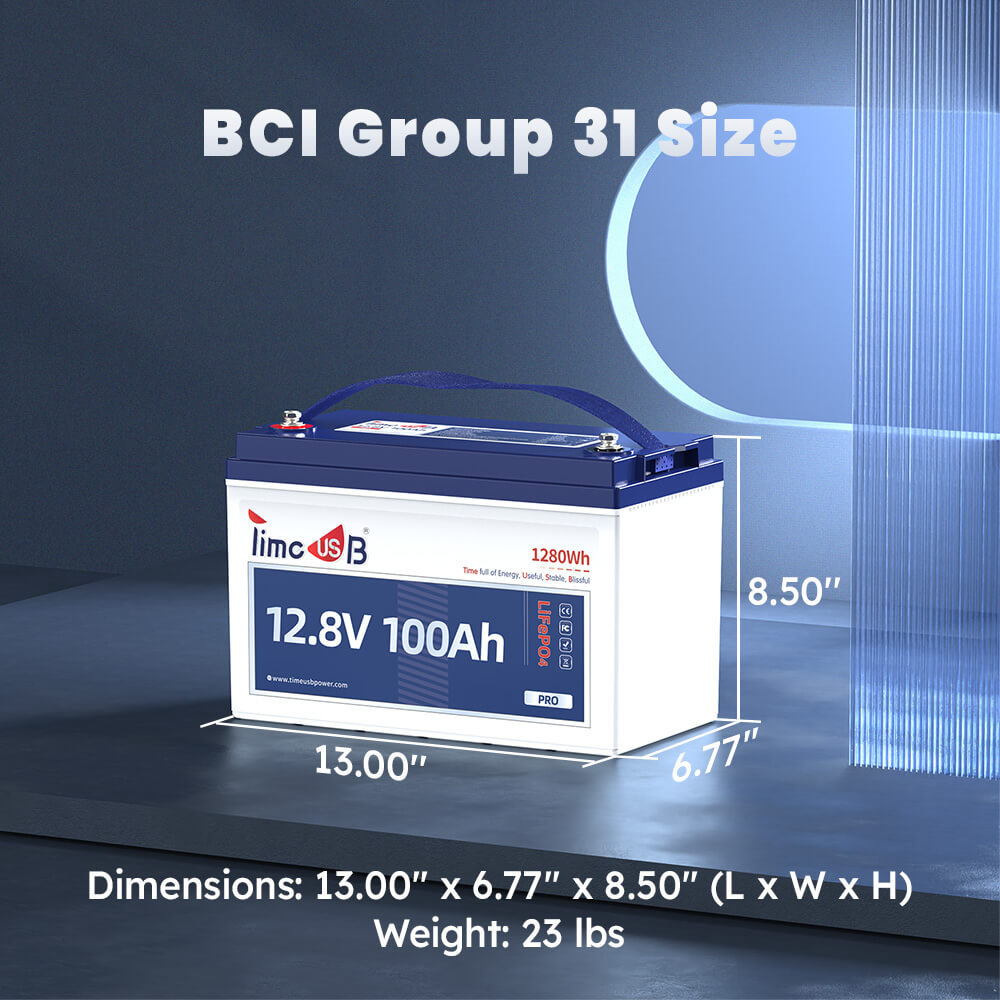

Q: What is a group 31 battery? Is Timeusb 12V 100Ah Pro deep cycle battery suitable to replace Group 31 battery?
A:
Group 31 batteries are designated by the BCI Group label, have a specific set of dimensions at L13 x W6.8 x H9.44 inches (L330 x W173 x H240 mm) and are suitable for semi-trucks and other deep cycle applications like off-the-grid systems, marine use, etc.
Timeusb 12V 100Ah Pro LiFePO4 Lithium Deep Cycle Battery measures L13 x W6.77 x H8.43 inches. It is a perfect replacement for group 31 batteries.
Q: What are the ways to charge Timeusb LiFePO4 Lithium batteries? Can I charge with solar panels?
A:
There are 3 ways to charge Timeusb LiFePO4 lithium batteries:
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Using Generator or Alternator
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity.
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. Using LiFePO4 Smart Chargers (Recommended)
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity.
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Of course you can charge with solar panels.

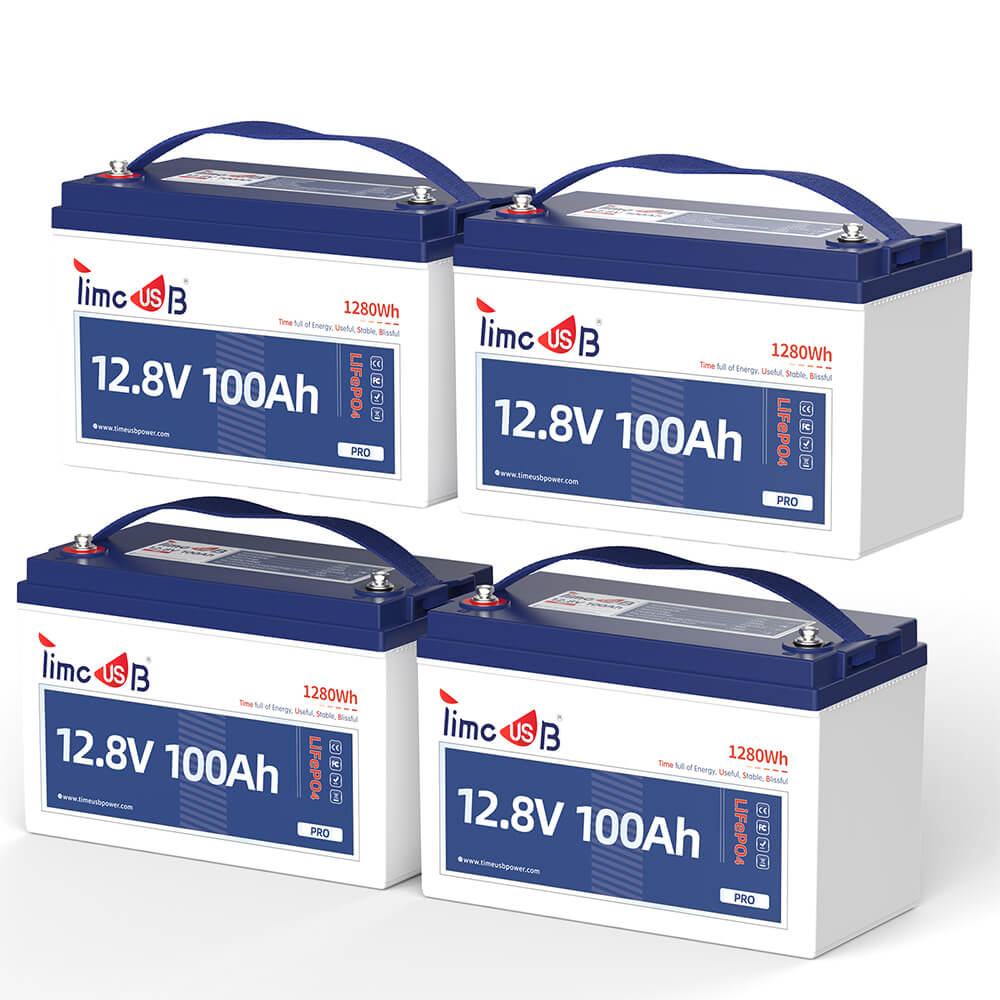

Q: What is the maximum number of Timeusb 12V 100Ah lithium batteries that can be connected?
A:
The Timeusb 12V battery supports a variety of connections, including series, parallel, and series-parallel configurations. You can connect up to 4 batteries in series (4S), 4 batteries in parallel (4P), or 16 batteries in a series-parallel configuration (4P4S).
Q: Can I connect both Timeusb 12V 100Ah Pro and 200Ah Plus LiFePO4 batteries at the same time?
A:
It is not recommended to connect the Timeusb batterie lithium ion 12V 100Ah Pro to the Timeusb 12V 200Ah Plus battery. The main reasons are two points:
①After parallel connection of batteries with different capacities, the current of 200Ah is twice as large as that of 100Ah when charging/discharging at the same time.
②The internal resistance of the 200Ah battery is 2-4mΩ, and that of the 100Ah battery is 7-9mΩ. When the batteries with different impedances are connected in parallel, it is possible to damage BMS after long-term use.
To connect in series or/ and in parallel, batteries should meet the below conditions:
①The same battery capacity (Ah) and same BMS.
②From the same brand (as lithium batteries from different brands have their special BMS).
③Purchased in near time (within three months).
④From the same types of battery.
Q: I have two Timeusb 12V lithium batteries 100Ah Pro and I want to expand the capacity. Can I just add a 12V 200Ah Plus lithium battery?
A:
Unfortunately no. The 12V 100Ah Pro battery has a built-in 100A BMS, and the 200Ah Plus has a built-in 200A BMS, and the capacities of the two battery models are different.
To connect in series or/ and in parallel, batteries should meet the below conditions:
①The same battery capacity (Ah) and same BMS.
②From the same brand (as lithium batteries from different brands have their special BMS).
③Purchased in near time (within three months).
④From the same types of battery.
If you want to expand your battery system, I would recommend adding 2 x 12V 100Ah Pro Batteries.
Q: How long will a 12V lithium-ion battery 100Ah last?
A:
There are two main situations to consider: one for devices that use direct current (DC) and another for those that use alternating current (AC).
For DC devices, battery duration depends on how much power, in watts, these devices require.
For AC devices, you need to think about a few things:
①The Power of the AC device: The power demands of the connected devices or appliances determine the amount of power drawn from the battery, affecting the runtime.
②The efficiency of the inverter that converts DC power to AC power (make sure the inverter can handle the power requirements of the AC device): The efficiency of the inverter affects the overall power conversion and usage, impacting the runtime of the battery.
Keep in mind that actual battery run time may vary depending on the condition of both the battery and the inverter, as well as how the DC/AC device is operating.
Q: Is it better to have 2 12V 100Ah lithium batteries or 1 12V 200Ah Plus lithium battery?
A:
If you need more power, it's a good idea to get a battery with a higher capacity. It's simpler to manage and take care of just one battery. You won’t have to deal with connecting extra batteries or making sure they’re balanced. Plus, one strong battery is usually more reliable because it works more consistently and steadily. It also saves space compared to using two batteries.
With two batteries, you could use one as a backup if the other one stops working.
So, you can decide based on what you need.
