PACKAGE CONTENTS
1 x 29.2V 20A Battery Charger
1 x Product Manual
1 x AC Cable
1 x DC Cable
Technical Details
BASIC
Charger Type：
LiFePO4 Battery Charger
Output Voltage：
29.2V
Output Current：
20A
Max Input Current：
10A

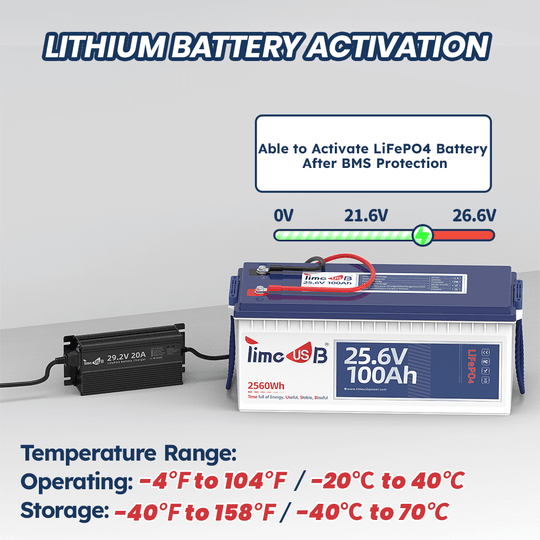

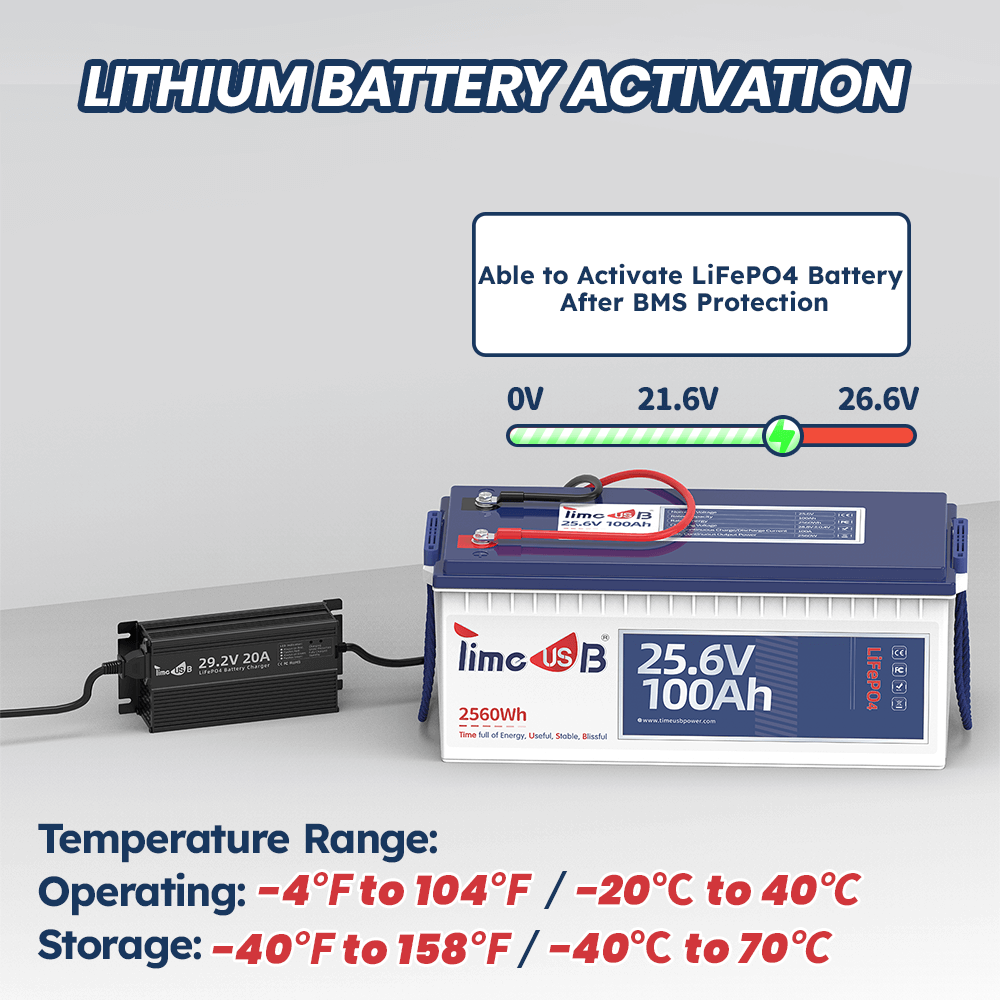

Lithium Battery Activation：
✔
Input Voltage Range：
AC 100V to 240V (50Hz to 60Hz)

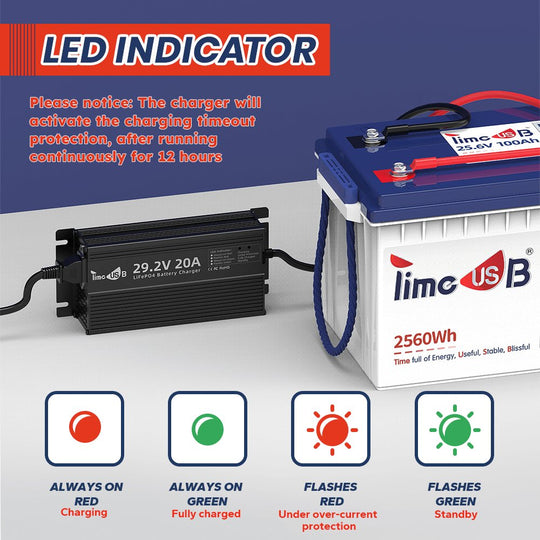

LED Indicator：
LED always on red: Battery is charging; LED always on green: Battery is fully charged; LED flashes green: Charger is on standby; LED flashes red: Charger fault or under protection (overtemperature protection, output short-circuit proctection, reverse polarity connection protection, output over-voltage protection).

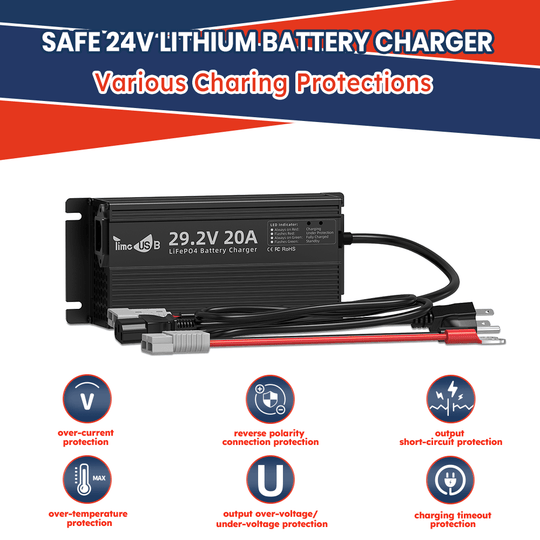

PROTECTION
Over Temperature：
✔
Output Short-Circuit：
✔
Reverse Polarity Connection：
✔
Output Over-Voltage：
✔
Output Over-Current：
✔
TEMPERATURE
Operating：
-4℉ to 104℉ (-20℃ to 40℃)
Storage：
-40℉ to 158℉ (-40℃ to 70℃)
OTHERS
Size：
L10.87 x W4.75 x H3.52 in.
Approx. Weight：
5.07 lbs
Warranty：
2 Years
Certifications：
CE/FCC/RoHS/PSE
Anderson Connector：
50A
FAQs
Q: Is it OK to leave a LiFePO4 lithium battery on the charger?
A:
If the correct voltage limit is set for the LiFePO4 lithium-ion battery, it is safe to leave the battery on the charger overnight. Timeusb Battery utilizes a LiFePO4 cell with a nominal voltage of 25.6V and a fully charged voltage of 29.2V. A charger with a 28.8-29.2V CC/CV output is suitable. As long as the CC/CV profile is followed, the maximum voltage is correct, and the current is not excessive, your battery will charge safely and fully.
Q: What voltage should LiFePO4 lithium batteries be charged at?
A:
The appropriate charger depends on the voltage of your LiFePO4 lithium batteries. For 24V LiFePO4 batteries, the recommended charger is the Timeusb 29.2V charger.
Q: Should I charge LiFePO4 to 100%?
A:
Yes, you can. However, charging a battery to less than 100% and avoiding complete discharge will always enhance cell longevity. Similarly, keeping the state of charge (SOC) between 20% and 80% will extend the lifespan of lithium batteries. For instance, Timeusb deep cycle lithium batteries can endure over 4000 deep cycles at 100% Depth of Discharge (DOD), over 6000 cycles at 80% DOD, and more than 15,000 cycles at 60% DOD.
Q: What charger should I use for LiFePO4 battery?
A:
To fully charge a 24V LiFePO4 battery, you need a charger with a voltage between 28.4V and 29.2V. Using a charger with a lower voltage will still charge the battery, but it won't reach 100% capacity.
Q: Can I charge a LiFePO4 battery with a trickle charger?
A:
Trickle charging is not suitable for lithium batteries. Using a trickle charger not specifically designed for LiFePO4 batteries can cause overcharging or damage because lithium batteries have different charging requirements compared to traditional lead-acid batteries.
What about a regular charger? For more information, refer to the article "Can I Charge LiFePO4 with a Normal Charger?"
