Versatile for Your Needs
PACKAGE CONTENTS:

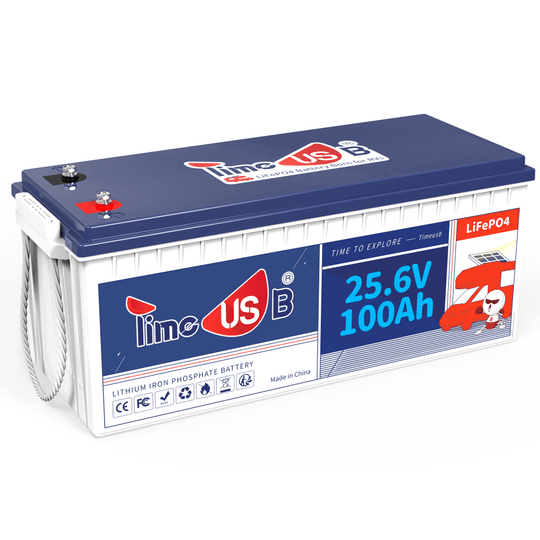

1 x 24V 100Ah LiFePO4 Battery
1 x Quick Start Guide
1 x Product Manual
2 x M8 Terminal Bolts
2 x Plastic Nut Caps
2 x Flat Washers
ATTENTION:
1. A charger is not included.
2. If a bolt is directly fastened or the thickness of the harness OT terminal piece used is less than 2 mm, add a flat washer for fastening.
NOTE:
This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads. If you have any questions, please provide a specific product link, and we will check compatibility for you.
Technical Details
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
25.6V
Rated Capacity：
100Ah
Energy：
2560Wh
Max. Expansion (Parallel & Series)：
4P (24V 400Ah) / 2R (48V 100Ah) / 4P2R (48V 400Ah)
Internal Resistance：
≤40mΩ
Certifications：
CE/FCC/UL-1973/RoHS

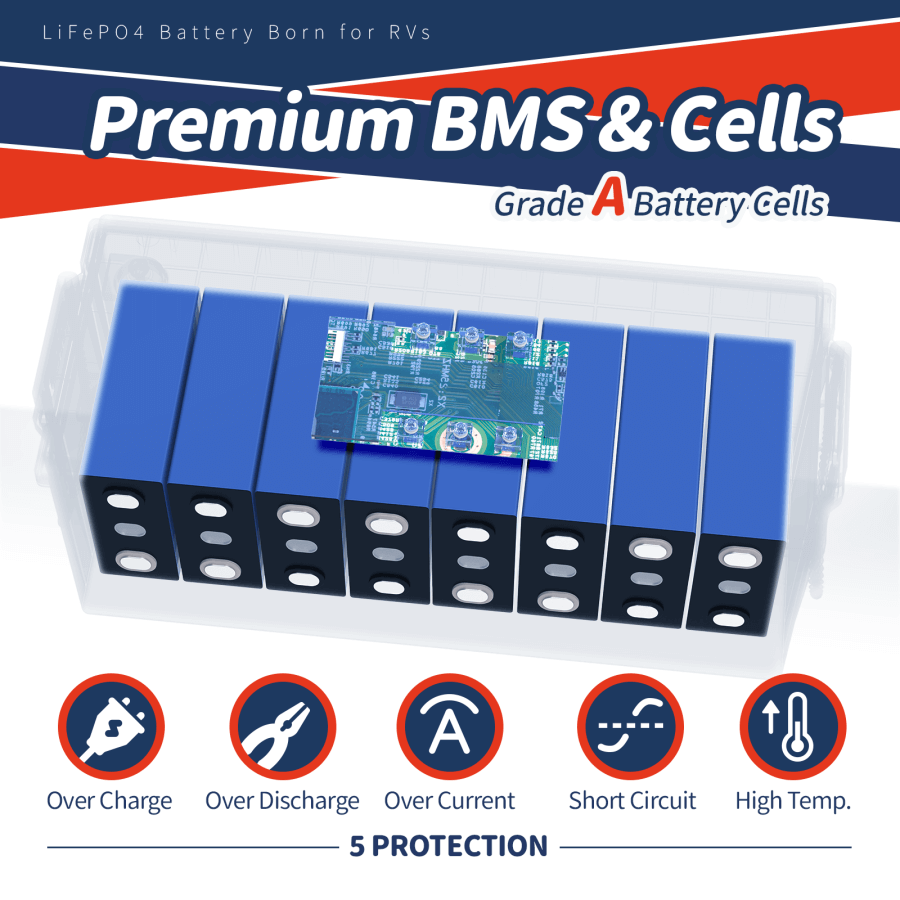

BMS
BMS：
100A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Max. Discharge Current 5 Seconds：
280
CHARGE
Charge Method：
CC/CV
Charge Voltage：
28.8V ± 0.4V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)
Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
OTHERS

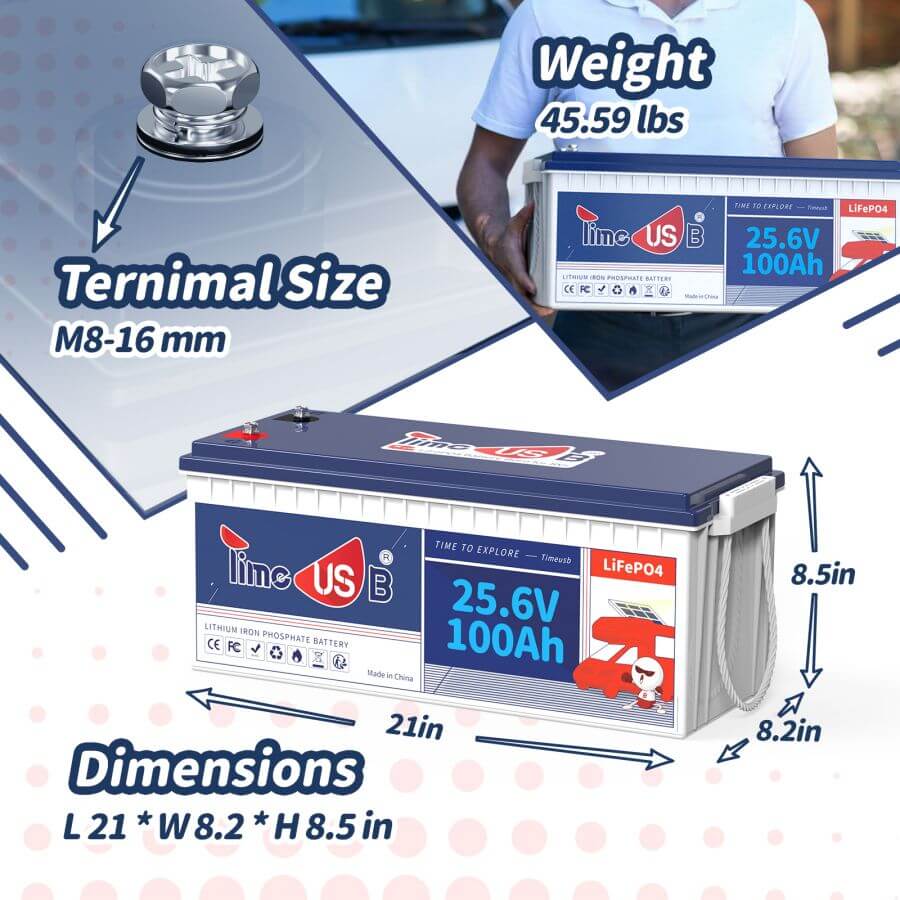

Terminals：
M8 bolts
Weight Approx.：
45.59 lbs
Size：
L21 x W8.2 x H8.5 in.
Housing Material：
ABS
Protection Class：
IP65
FAQs
Q: Can I use Timeusb LiFePO4 Lithium batteries as starting batteries?
A:
Timeusb LiFePO4 batteries are designed primarily for energy storage applications and are not suitable for use as starting batteries. They do not provide the Cold Cranking Amps (CCA) needed to start an engine.
For more information, please see the article "Deep Cycle VS Starting Battery."
Q: Can I use the Timeusb 24V 100Ah LiFePO4 Lithium Battery for my trolling motor?
A:
Timeusb 24V 100Ah LiFePO4 Lithium Batteries are compatible with trolling motor thrust between 70 and 100 lbs. If you have additional questions, we can provide you with recommendations based on your needs.
Q: What is the maximum number of Timeusb 24V 100Ah LiFePO4 Lithium Battery that can be connected?
A:
Timeusb 24V battery supports versatile connections including series, parallel and serial-parallel connections. You can connect up to 2 batteries in series (2S), 4 in parallel (4P) or 8 in series-parallel connection (4P2S).
Q: What is the maximum discharge capacity of a Timeusb 24V 100Ah LiFePO4 Lithium Battery?
A:
The Timeusb 24V 100Ah LiFePO4 Lithium Battery has a maximum continuous discharge of 100Ah and a surge discharge of 280Ah for 5 seconds.
Q: How do I store Timeusb LiFePO4 lithium batteries?
A:
It is recommended to store Timeusb LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH.
