Why choose Timeusb 12V 230Ah LiFePO4 battery?
Timeusb 12V 230Ah LiFePO4 battery is made of high-quality cells, safe 150A BMS, IP65 waterproof case with a 5-year warranty. Max. continuous load power of one 12V 230Ah lithium battery is 1920W and it supports Max 16 batteries of 4P4S.
High-Performance & Long-Lasting Deep Cycle Battery
This 12V lithium ion battery supports 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, and 15,000 cycles at 60% DOD. It has flexible usage options that support multiple deep cycle modes from deep discharge to shallow discharge and performs well in long-life applications.
Secure Internal 150A Battery Management System
Equipped with a 150A BMS board, the 12V 230Ah LiFePO4 battery has 5 intelligent protections, inclusive of over-charging protection, over-discharging protection, over-current protection, over-heating protection, and short-circuit protection.
Smaller Size, Larger Capacity
Compared to the 12V 200Ah Plus LiFePO4 battery, this 12V 230Ah lithium battery has a smaller size but stores more usable energy of 2944Wh. It's a good choice if you need a large energy-density battery that is smaller but stores more energy.
Easy And Convenient To Charge The Battery

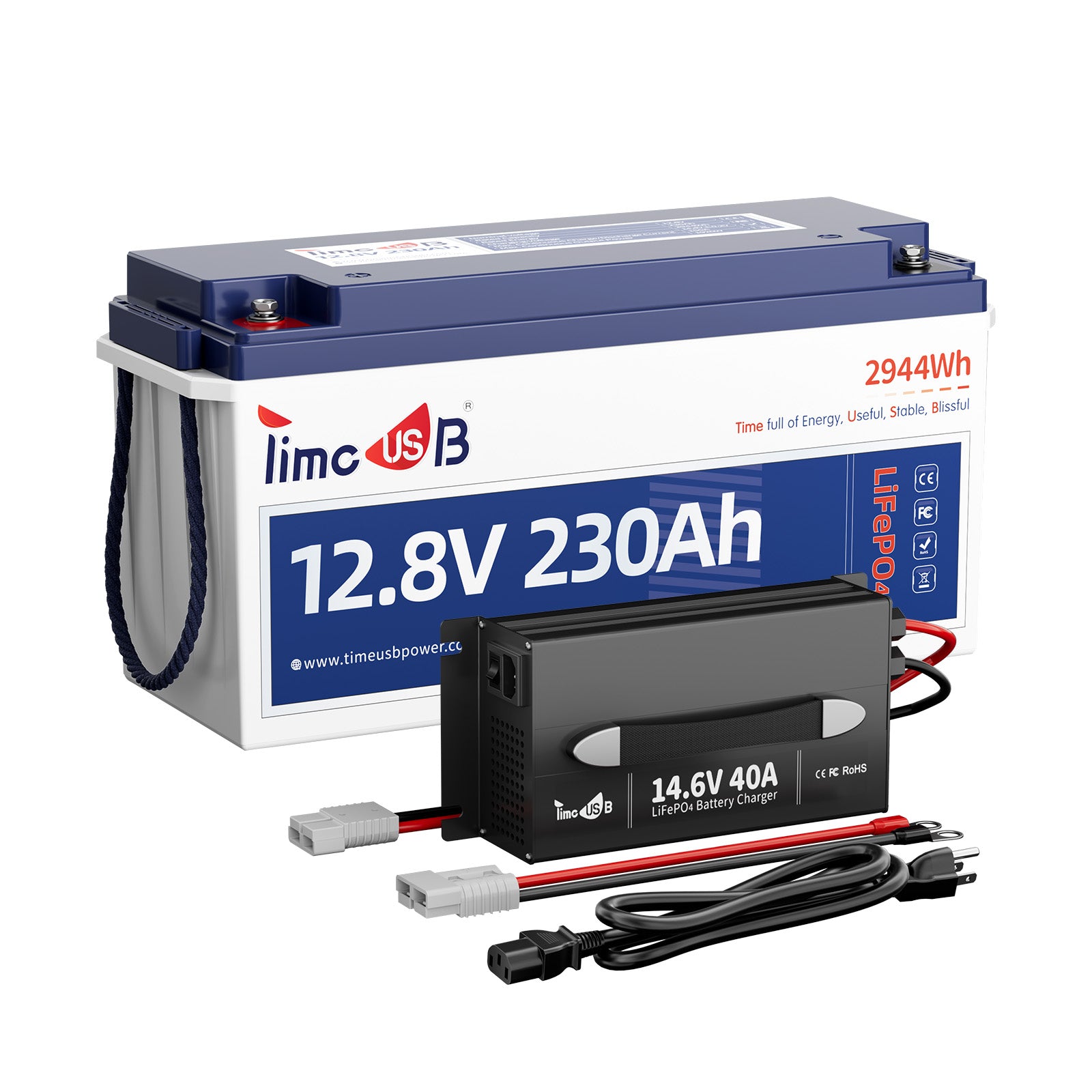

Four charging methods support you to recharge your 12V 230Ah LiFepo4 battery battery handily and flexibly. Four charging solutions are inclusive of the 14.6V 40A LiFePO4 battery charger, the solar panel with an MPPT controller, the generator with AC-DC 40A charger, and the alternator with DC-DC 40A charger.
Adjustable Energy Storage System
This 12V lithium ion battery can be connected flexibly. Whether you want to build a 2P system, a 2S system or a 4P4S system, it all supports. For the demand of a massive energy system, a 16-battery connection of 4 in parallel and 4 in series is recommended, it can reach up to 47.10 kWh of energy, leaving you no fear of energy shortage.
Suitable For Multiple Usage Occasions, Support Your Dream Of Exploring The World
This 12V lithium ion battery meets your versatile energy needs. Whether you are looking for a battery for your RV, motorhome, travel trailer, or fifth wheel, this 12V 230Ah battery is a reliable and stable energy source.
Excellent Service And Quality Assurance
Timeusb provides a 5-year warranty for the battery and all our products have been tested rigorously in the factory, which means you have no worries about the product quality. We also have local warehouses in the US that ensure free and fast delivery. If you have any questions, Timeusb customer service team are always here to help you.
PACKAGE CONTENTS:
1 x 12V 230Ah LiFePO4 Battery
1 x Product Manual
2 x M8 Terminal Bolts
2 x Plastic Nut Caps
2 x Flat Washers
ATTENTION:
1. A charger is not included.
2. If a bolt is directly fastened or the thickness of the harness OT terminal piece used is less than 2 mm, add a flat washer for fastening.
NOTE:
This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads. If you have any questions, please provide a specific product link, and we will check compatibility for you.
Technical Details
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
230Ah
Energy：
2944Wh
Max. Expansion (Parallel & Series)：
4P (12V 920Ah) / 4S (48V 230Ah) / 4P4S (48V 920Ah)
Internal Resistance：
≤40mΩ
Certifications：
FCC/UL1973
BMS
BMS：
150A
Max. Continuous Output Power：
1920W
Max. Continuous Charge Current：
150A
Max. Continuous Discharge Current：
150A
Surge Discharge Current (1 Second)：
600A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
46A (0.2C)
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)
Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
OTHERS
Terminals：
M8 bolts
Weight Approx.：
43.14 lbs
Size：
L19.02 x W6.69 x H9.45 in.
Housing Material：
ABS
Protection Class：
IP65
FAQs
Q: Can I use Timeusb LiFePO4 Lithium batteries as starting batteries?
A:
No, Timeusb 12V 100Ah LiFePO4 battery is not designed to be used to start devices but to be used as an energy storage battery.
Timeusb 12V 100Ah LiFePO4 battery is a deep cycle battery which will provide a steady and consistent supply of power.
For more information about the deep cycle battery and starting battery, please refer to the article: Deep Cycle Battery VS Starting Battery.
Q: What is the maximum number of Timeusb 12V deep cycle batteries 230Ah that can be connected?
A:
Timeusb 12V battery supports versatile connections including series, parallel and serial-parallel connections. You can connect up to 4 batteries in parallel (4P), 4 batteries in series (4S), or 16 batteries in series-parallel connection (4P4S).
Q: What is the maximum discharge capacity of a Timeusb 12V 230Ah LiFePO4 battery?
A:
The Timeusb 12V 230Ah LiFePO4 battery has a maximum continuous discharge of 150Ah and a surge discharge of 600Ah for 1 second.
Q: How do I store Timeusb LiFePO4 batteries?
A:
It is recommended to store Timeusb LiFePO4 batteries at a 50% state of charge (SOC). For long-term storage, cycle the batteries at least once every six months. The ideal storage conditions include: 10℃～35℃ (50℉～95℉), 45%RH～75％RH.
Q: Why to choose lithium batteries?
A:
Compared to lead-acid batteries, lithium batteries have significant advantages, such as longer lifespan, more deep cycle times, equipped BMS, etc.
While the lifespan of lead-acid batteries is typically 2-3 years, Timeusb LiFePO4 battery has a lifespan of up to 10 years with more than 4000+ deep cycles.
Equipped with a BMS board, a lithium battery is safer than a lead-acid battery as the battery management system(BMS) can protect the lithium battery from these situations: over-charge, over-discharge, over-temperature, over-current, and short circuit.
If you would like to know more about the lithium battery, this article is recommended: Comparison Between LiFePO4 & Lead-Acid Battery.
