Small & Light Design
This Timeusb 12V LiFePO4 lithium battery charger with dimensions L8.13 x W2.5 xH3.56 inches and weighs 2.87 lbs is easy to carry, you can use it to recharge your lithium battery anytime, anywhere.
Easy To Use

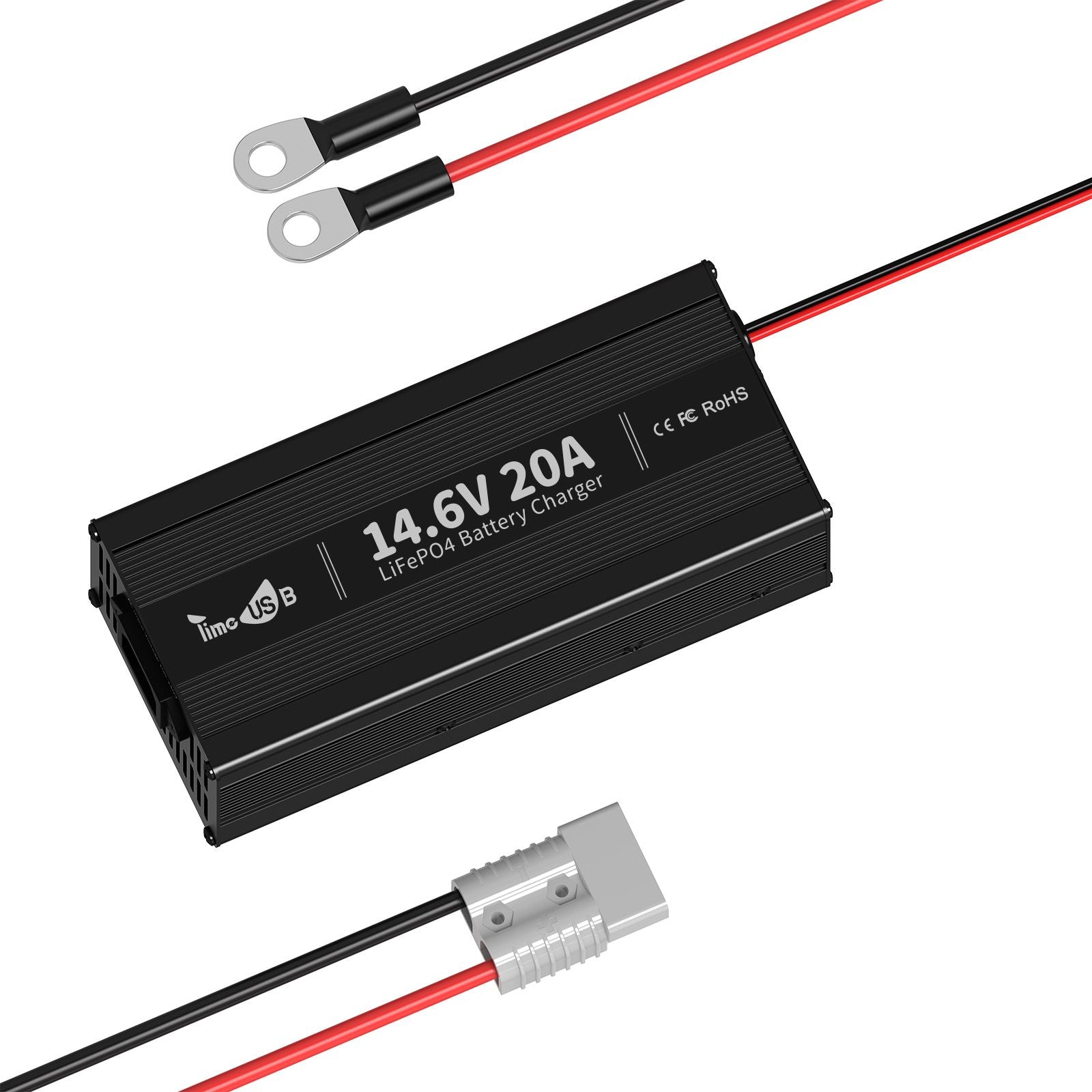

Timeusb 12V 20A lithium battery charger is upgraded to 50A Anderson connectors and M8 terminals. Follow the instructions to connect the charger to quickly establish the connection between the battery and the charger.

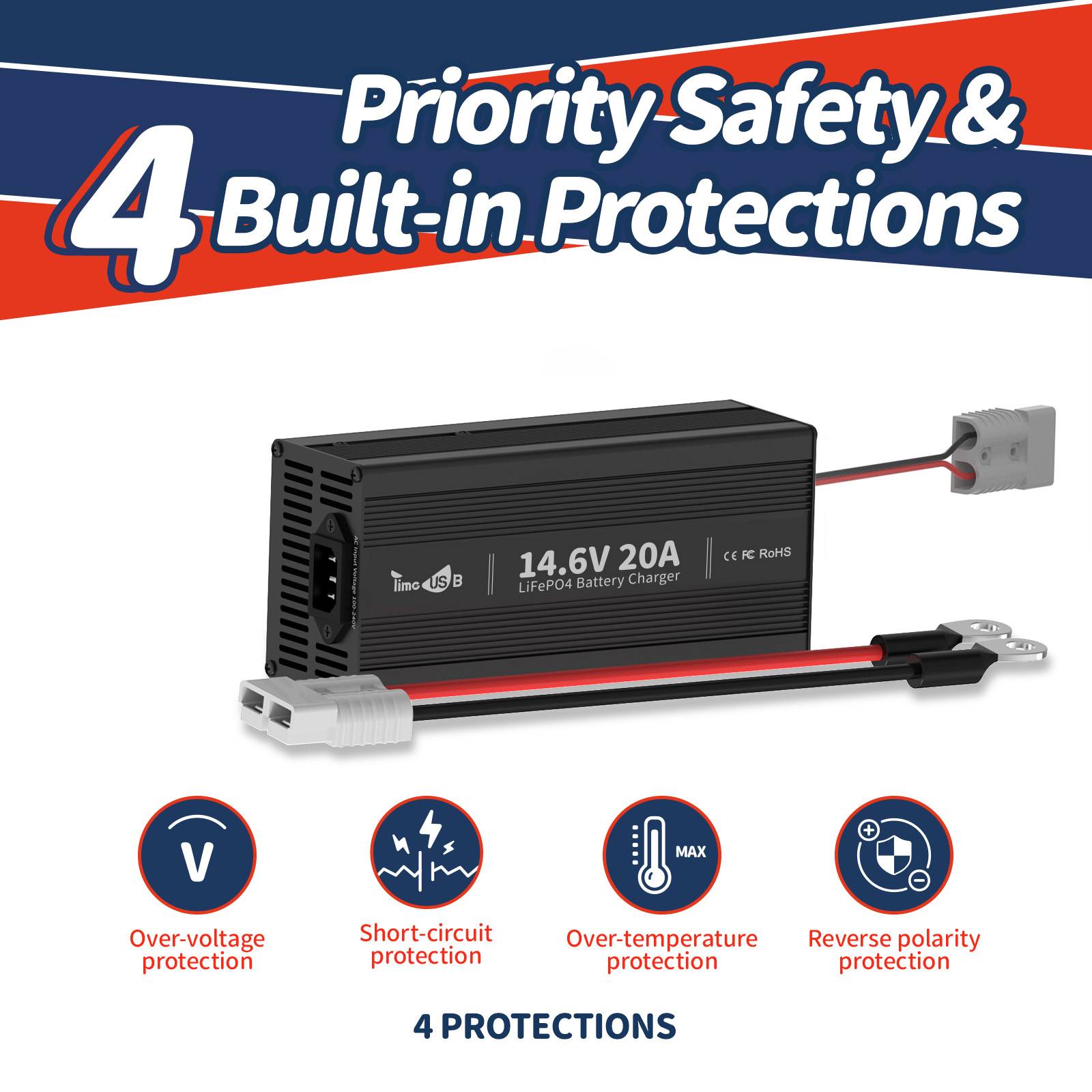

Build-in Safety Protection
This portable lithium battery charger has 4 built-in protection functions to ensure charging safety, including over-voltage protection, short-circuit protection, over-temperature protection, and reverse polarity connection protection.

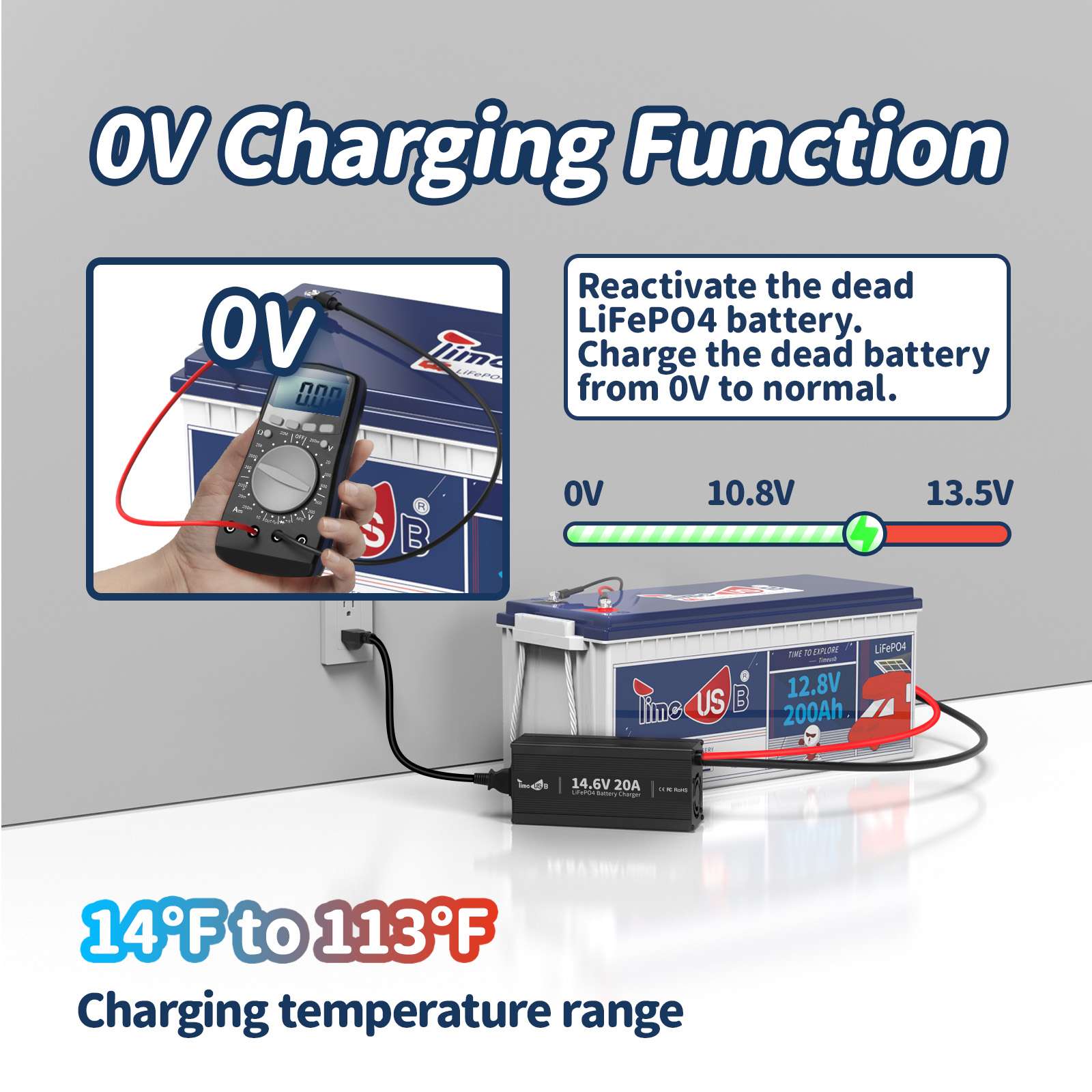

ACTIVATE YOUR BATTERY

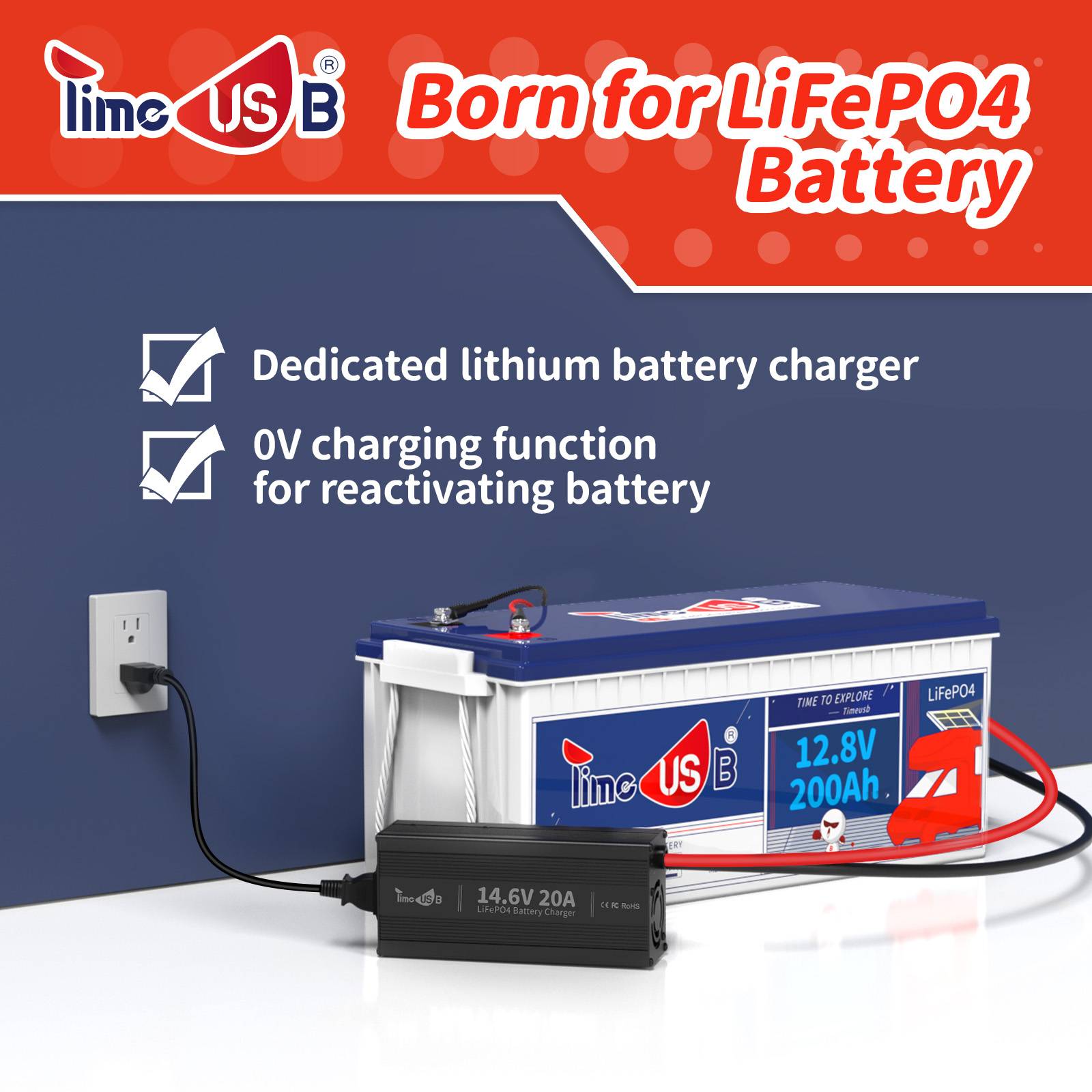

Timeusb 12V 20A AC-to-DC charger is able to activate your LiFePO4 battery after BMS Protection. Once you connect the charger and battery to charge, your battery will be activated in just 3 seconds.

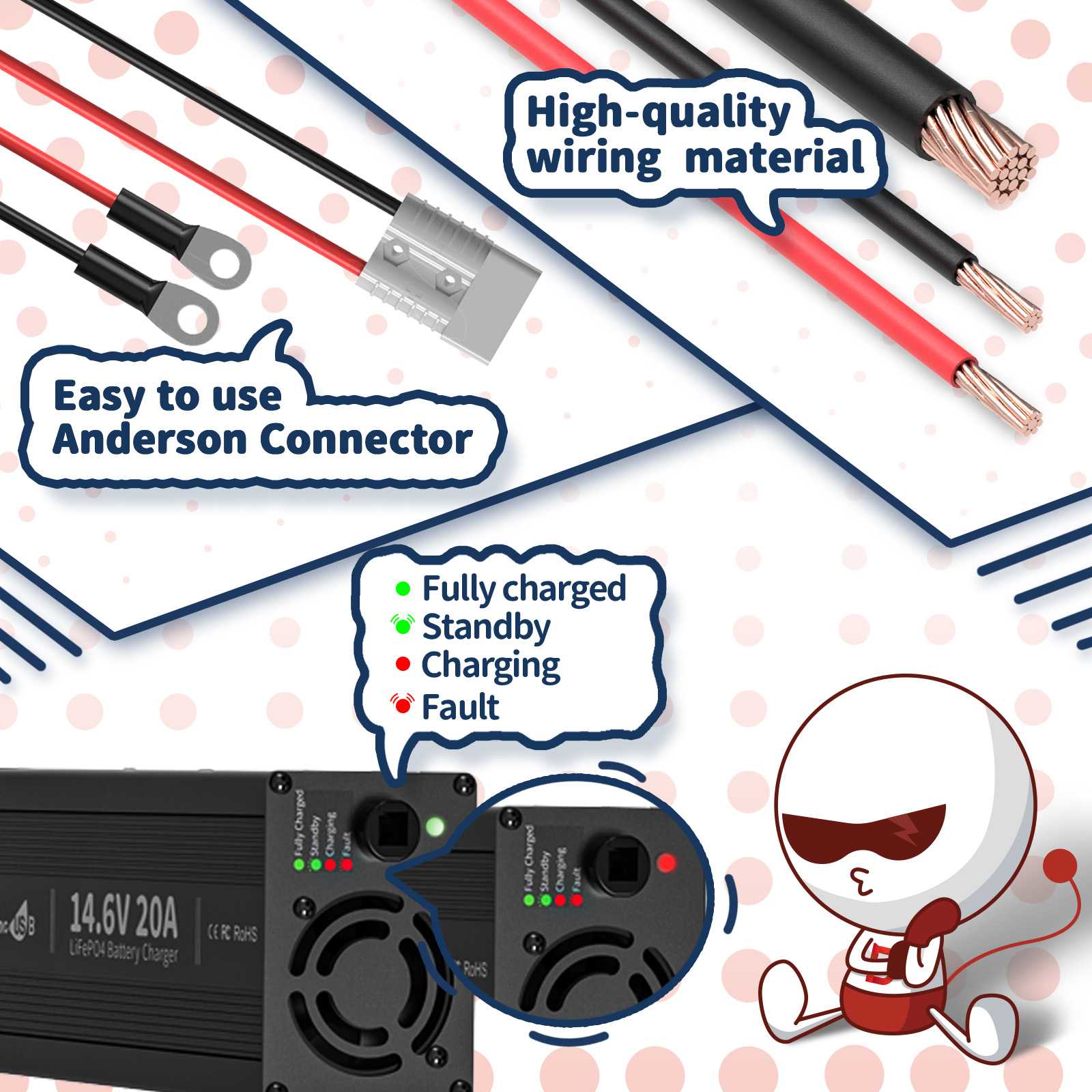

Real-Time Check Charging Status
The charger's indicator light can remind the wrong charging status and achieves all-round monitoring and protection.
Fast & Efficient Charging Stage
A 3-stage intelligent charging design (pre-charge, CC, and CV) can accurately identify battery voltage, automatically switch charging modes, and provide fast and efficient charging for lithium batteries.
Compatible With Various 12V LiFePO4 Batteries
This Timeusb 12V portable battery charger is the perfect fit for the most of 12V LiFePO4 lithium batteries on the market. It only takes 2.5 hours to charge a 12V 50Ah lithium battery and 5 hours to charge a 100Ah deep cycle battery.

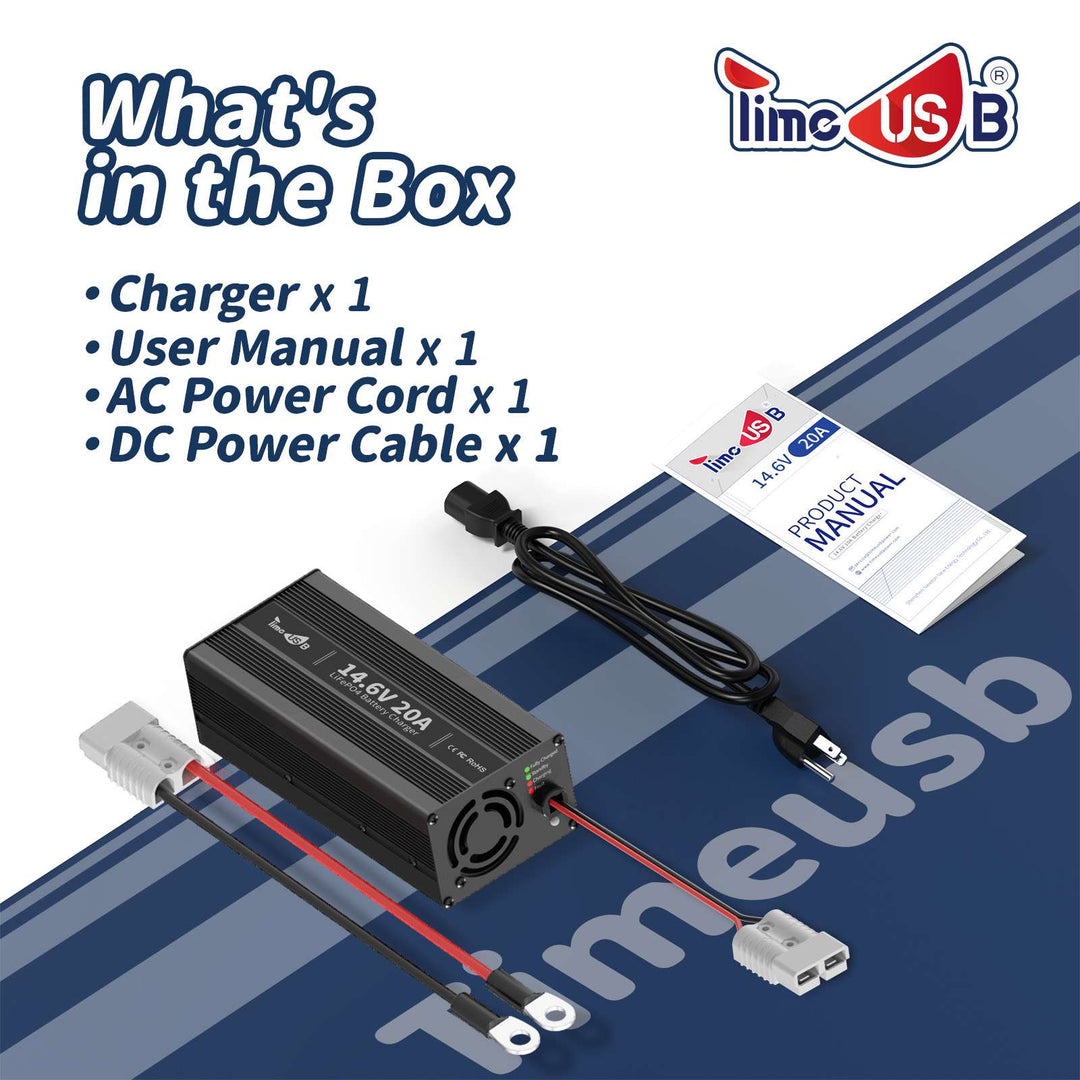

PACKAGE CONTENTS
1 x 14.6V 20A Battery Charger
1 x User Manual
1 x AC Power Cord
1 x DC Power Cable
Technical Details
BASIC
Charger Type：
LiFePO4 Battery Charger
Output Voltage：
14.6V
Output Current：
20A
Max Input Current：
7A
Lithium Battery Activation：
✔
Input Voltage Range：
AC 100V to 240V (50Hz to 60Hz)
LED Indicator：
LED always on red: Battery is charging; LED always on green: Battery is fully charged; LED flashes green: Charger is on standby; LED flashes red: Charger fault or under protection (overtemperature protection, output short-circuit proctection, reverse polarity connection protection, output over-voltage protection).
PROTECTION
Over Temperature：
✔
Output Short-Circuit：
✔
Reverse Polarity Connection：
✔
Output Over-Voltage：
✔
TEMPERATURE
Operating：
-4℉ to 104℉ (-20℃ to 40℃)
Storage：
-40℉ to 158℉ (-40℃ to 70℃)
OTHERS
Size：
L8.13 x W3.56 x H2.5 in.
Approx. Weight：
2.87 lbs
Warranty：
2 Years
Certifications：
CE/FCC/RoHS
Anderson Connector：
50A Anderson Connector
FAQs
Q: Is it ok to leave a LiFePO4 lithium battery on the charger?
A:
If the correct voltage limit is set for the LiFePO4 lithium-ion battery, it is safe to leave the battery on the charger overnight. Timeusb Battery utilizes a LiFePO4 cell with a nominal voltage of 12.8V and a fully charged voltage of 14.6V. A charger with a 14.4-14.6V CC/CV output is suitable, provided it does not exceed roughly 1C maximum current output. As long as the CC/CV profile is followed, the maximum voltage is correct, and the current is not excessive, your battery will charge safely and fully.
Q: What voltage should LiFePO4 lithium batteries be charged at?
A:
The appropriate charger depends on the voltage of your LiFePO4 lithium batteries. For 12V LiFePO4 batteries, the recommended charger is the Timeusb 14.6V charger.
Q: What charger should I use for LiFePO4 battery?
A:
To fully charge a 12V LiFePO4 battery, you need a charger that provides a voltage between 14V and 14.6V. Using a charger with a lower voltage will still charge the battery, but it won't achieve a full 100% capacity.
Q: Can I charge a LiFePO4 battery with a trickle charger?
A:
Trickle charging is not suitable for lithium batteries. Using a trickle charger that isn't specifically designed for LiFePO4 batteries can lead to overcharging or damage, since lithium batteries have different charging requirements compared to traditional lead-acid batteries.
What about a regular charger? For more details, refer to the article "Can I Charge Lifepo4 with a Normal Charger?"
Q: Should I charge LiFePO4 to 100%?
A:
Charging a battery to less than 100% and avoiding complete discharge consistently enhances cell longevity. Similarly, keeping the state of charge (SoC) between 20% and 80% will extend the lifespan of lithium batteries.
Timeusb deep cycle lithium batteries, for instance, can endure over 4000 deep cycles at 100% Depth of Discharge (DOD), over 6000 cycles at 80% DOD, and more than 15,000 cycles at 60% DOD.
