PACKAGE CONTENTS:

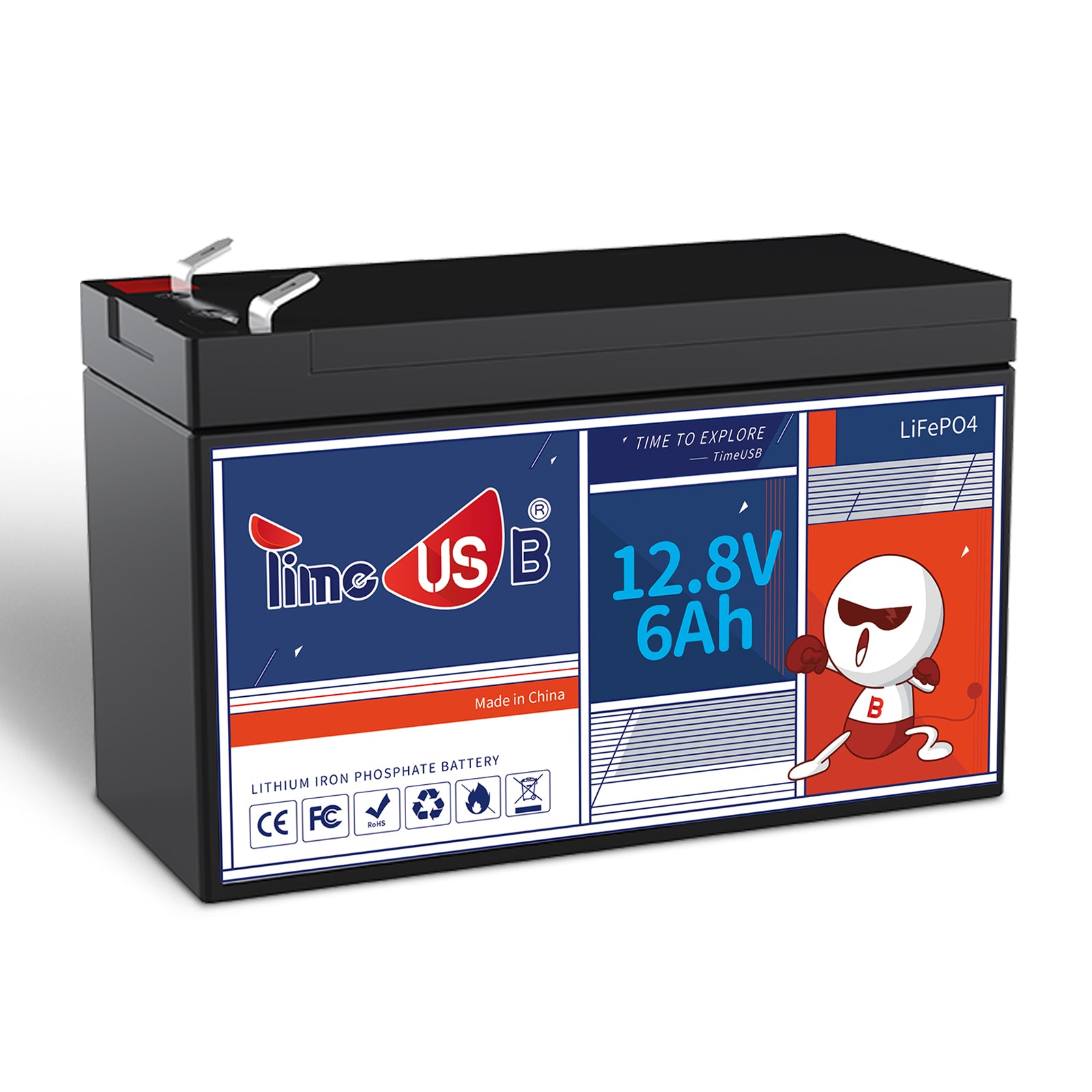

1 x 12V 6Ah LiFePO4 Battery
1 x Quick Start Guide
1 x Product Manual
2 x M8 Terminal Bolts
2 x Plastic Nut Caps
2 x Flat Washers
ATTENTION:
1. A charger is not included.
2. If a bolt is directly fastened or the thickness of the harness OT terminal piece used is less than 2 mm, add a flat washer for fastening.
NOTE:
This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads. If you have any questions, please provide a specific product link, and we will check compatibility for you.
Technical Details
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
3 Years
Cycle Life：
≥ 2000
Nominal Voltage：
12.8V
Rated Capacity：
6Ah
Energy：
76.8 Wh
Max. Expansion (Parallel & Series)：
4P (12V 24Ah) / 4S (48V 6Ah)
Internal Resistance：
≤10mΩ
Certifications：
FCC/UL1973/CE/RoHS/PSE
BMS
BMS：
6A
Max. Continuous Output Power：
76.8 W
Max. Continuous Charge Current：
6A
Max. Continuous Discharge Current：
6A
Max. Discharge Current 5 Seconds：
15A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4 ± 0.2V
Recommend Charge Current：
1.2A
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)
Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
OTHERS
Terminals：
M8 bolts
Weight Approx.：
1.78 lbs

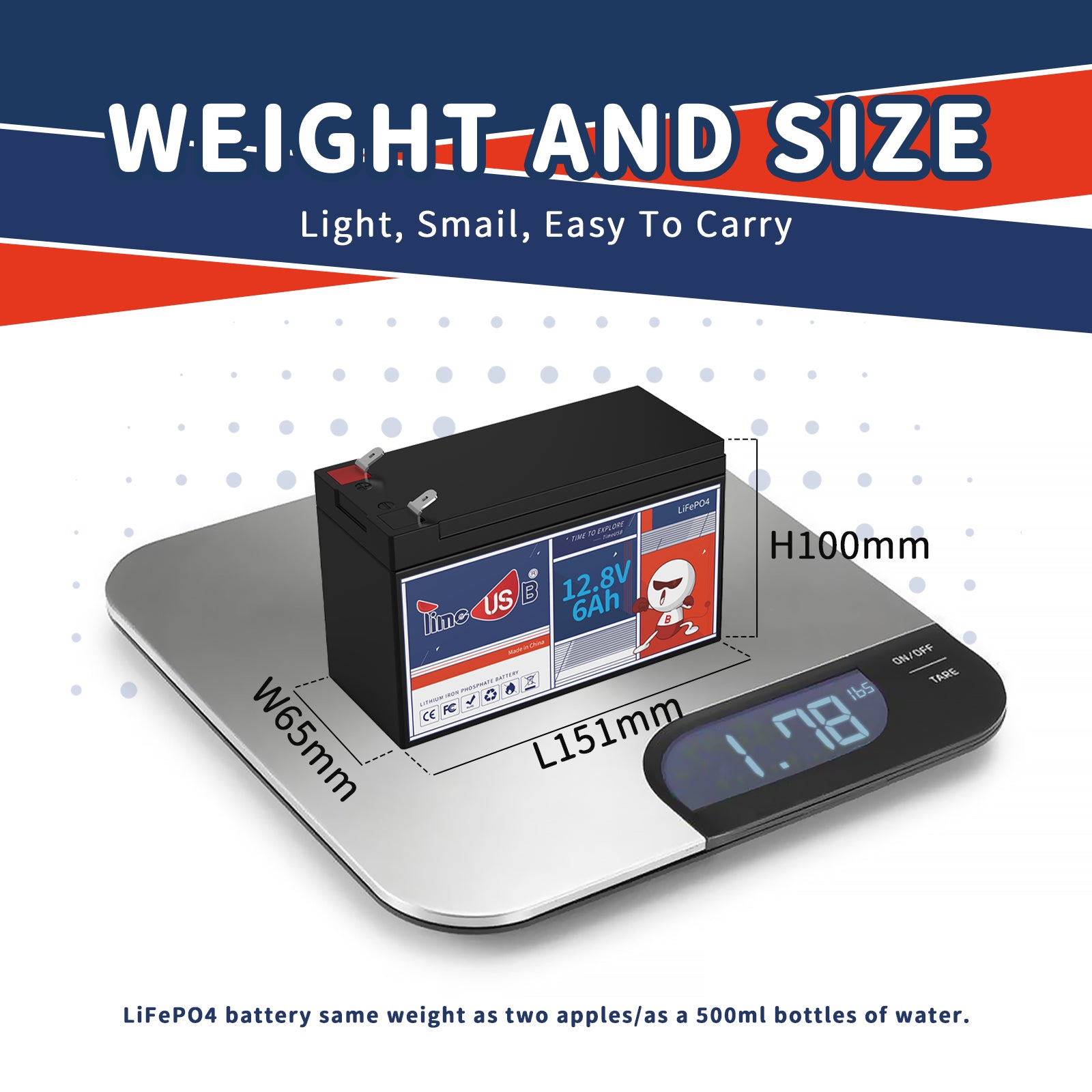

Size：
L6 x W2.6 x H3.7 in.
Housing Material：
ABS
Protection Class：
IP65
FAQs
Q: How long does the Timeusb 12V battery 6A last?
A:
Timeusb LiFePO4 battery can be used for 2000+ life cycles. Depending on usage, a service life of 10 years or more is possible.
Q: For which scenarios is the 12 Volt battery 6Ah model suitable?
A:
The small LiFePO4 battery with 12V 6Ah is ideal in size for use in small devices.
Q: How do I store Timeusb lithium battery?
A:
It is recommended to store Timeusb LiFePO4 battery at a state of charge (SOC) of 50%. If the batteries are stored for a long period of time, charge them at least once every 3 months. And recommended storage environment: 10℃ to 35℃.
