AGM vs. Lithium Batteries: Which Is Superior for RVs and Marine Applications?
![AGM vs. Lithium Batteries: Which Is Superior for RVs and Marine Applications?](http://www.timeusbpower.com/cdn/shop/articles/AGM_vs._Lithium_Batteries_Which_Is_Superior_for_RVs_and_Marine_Applications_dcfd926c-fd85-4e07-a2ac-e9c818ee19c1.jpg?v=1723973206&width=1600)
In today's modern era, portable power is indispensable across various applications, making the selection of the right battery technology vital for achieving peak performance, longevity, and cost efficiency.
AGM (Absorbent Glass Mat) batteries and lithium batteries are prominent options, each prized for their distinct qualities and applications. Differentiating between these battery types is essential for making well-informed decisions.
What is AGM Battery
AGM, short for Absorbent Glass Mat, represents an advanced form of lead-acid battery. Unlike traditional lead-acid batteries, AGM batteries embed the electrolyte (sulfuric acid) within a fiberglass mat, making them spill-proof and maintenance-free.
AGM batteries are widely favored in applications needing dependable, maintenance-free power storage, including backup power systems, renewable energy storage, marine and RV applications, and select automotive uses. Recognized for their capability to deliver high currents as needed, AGM batteries excel in situations where a reliable power source is paramount.
What is Lithium Battery
A lithium battery is a rechargeable power source that utilizes lithium as its active material, making it highly favored across a wide array of applications. Known for their high energy density, low self-discharge rates, and long lifespan, lithium batteries can be recharged hundreds to thousands of times. They are available in various chemistries, including lithium-ion (Li-ion), lithium polymer (LiPo), and lithium iron phosphate (LiFePO4), each offering distinct characteristics.
Lithium-ion batteries are extensively employed in consumer electronics such as smartphones, laptops, and tablets, as well as in electric vehicles, power tools, and energy storage systems. Their lightweight design and superior energy density make them ideal for portable electronic devices and electric vehicles.
Lithium batteries are prized for their capability to deliver substantial power and high energy density, making them the preferred choice in numerous modern applications. Nevertheless, proper handling and charging are essential to ensure safety and maximize their lifespan.
The Comprehensive Comparison of AGM VS Lithium Battery
To comprehend the performance disparities between AGM and lithium batteries, we will evaluate them across critical parameters. This analysis will delineate which battery excels in each category, empowering you to make a judicious decision tailored to your specific requirements.
Depth of Discharge (DoD):
- AGM: Generally allows for a depth of discharge around 50%. Going beyond this limit can damage the battery and shorten its lifespan.
- Lithium: Supports much deeper discharges, often exceeding 80% and up to 100% without adverse effects. As a result, a lithium battery of the same capacity can offer up to twice the usable energy compared to an AGM battery.
Lifespan:
- AGM: AGM batteries typically have a lifespan of about 300 to 500 cycles, corresponding to a service life of approximately 3 to 5 years.
- Lithium: Lithium batteries generally offer a much longer lifespan, with cycle counts ranging from 4,000 to 15,000 cycles. For instance, Timeusb lithium batteries can last between 10 to 15 years.
Size and Weight:
- AGM: AGM batteries are typically heavy, with a 12V 100Ah model weighing between 63 and 70 lbs.
- Lithium: In contrast, lithium batteries are significantly lighter and more compact. For instance, a Timeusb 12V 100Ah Group 24 Lithium battery weighs only 21 lbs.
Energy Density:
- AGM: A Group 24 AGM battery typically has an energy density of approximately 7.23 Wh/lb.
- Lithium: By contrast, a Group 24 lithium battery boasts a significantly higher energy density, around 60.95 Wh/lb.
Charge Time and Efficiency:
- AGM: AGM batteries typically have longer charge times and lower charge efficiency compared to lithium batteries. It usually takes about 8 hours to fully charge an AGM battery.
- Lithium: In contrast, lithium batteries charge faster and more efficiently than AGM batteries. Most lithium batteries support 0.2C charging; for example, a 12V 100Ah lithium battery, with a recommended charging current of 20A, can be fully charged in 5-6 hours.
Maintenance:
- AGM: AGM batteries generally require minimal maintenance but may benefit from occasional equalization charging. It's advisable to keep them fully charged when not in use.
- Lithium: Lithium batteries require minimal maintenance and do not need regular equalization charging.
Environment Friendly:
Both AGM and lithium batteries are recyclable and provide environmentally friendly options. However, lithium batteries hold a slight edge due to their higher energy density and longer lifespan, resulting in fewer batteries needing recycling over time.
Safety:
- AGM: AGM batteries are generally safe but can release hydrogen gas if overcharged or improperly maintained.

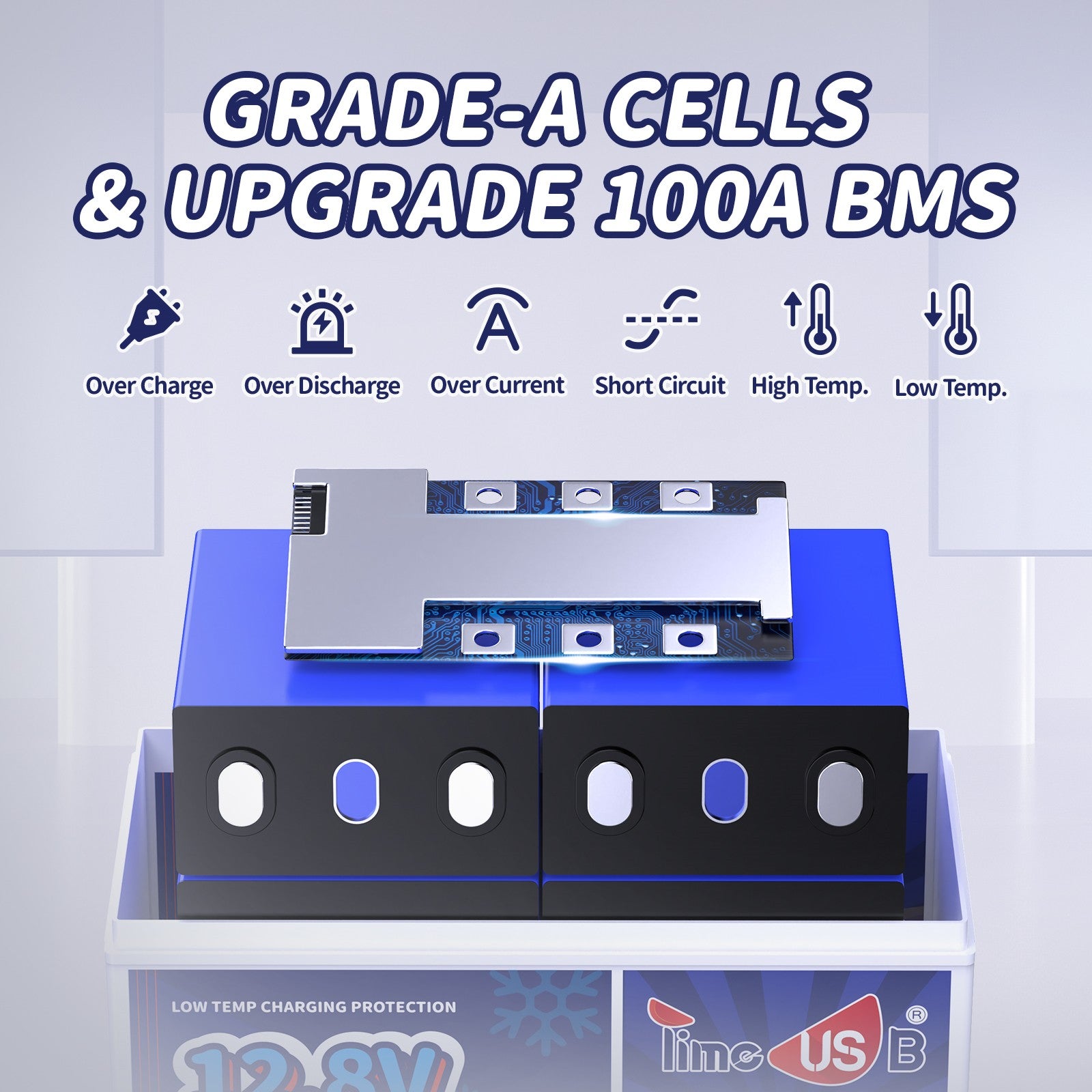

- Lithium: Lithium-ion batteries do not produce gas accumulation and contain no toxic liquids, making them inherently safe for use without additional safety precautions. Moreover, lithium batteries are equipped with a Battery Management System (BMS) for enhanced protection.
Bluetooth Technology
Lithium batteries provide a notable technological edge over AGM batteries. For example, Bluetooth technology enables convenient real-time monitoring of battery status, ensuring smooth operation before setting out on boating trips, RV adventures, or UTV excursions.
Through Bluetooth connectivity, users can effortlessly monitor crucial details such as remaining charge, voltage levels, and temperature. The App on your smartphone facilitates easy access to comprehensive battery data with just a few taps, eliminating guesswork and uncertainty while ensuring peace of mind in managing power requirements.
Initial Cost
Cost plays a crucial role in selecting between two types of batteries, focusing on two critical factors: initial cost and cost per kWh.
Lithium-ion batteries require a higher upfront investment. Despite their superior performance in various aspects compared to AGM batteries, the initial cost is significantly higher.
AGM batteries appear as the more economical choice in terms of initial investment. However, when evaluating lifetime expenses, lithium-ion batteries demonstrate their superiority due to their markedly extended lifespan.
Aspect |
AGM Battery |
Lithium Battery |
Depth of Discharge |
Typically around 50% |
Over 80%, up to 100% without damage |
Lifespan |
300-500 cycles, 3-5 years |
4000-15000 cycles, 10-15 years |
Size and Weight |
Heavier, 12V 100Ah: 63-70lbs |
Lighter, 12V 100Ah: 21lbs |
Energy Density |
7.23Wh/lbs |
6X than similar Lead Acid batteries |
Charge Time |
Longer charge times |
Shorter charge times |
Charge Efficiency |
Lower charge efficiency |
Higher charge efficiency |
Maintenance |
Minimal maintenance, occasional equalization charging |
Minimal maintenance, no regular equalization charging |
Environmental Impact |
Recyclable, less environmentally friendly due to energy density and shorter lifespan |
Recyclable, more environmentally friendly due to energy density and longer lifespan |
Safety |
Generally safe, potential hydrogen gas release if overcharged |
Safer, no gas release, equipped with BMS for protection |
Bluetooth |
No |
Yes |
Initial Cost |
Lower |
Higher |
Comparison of AGM and Lithium Battery Applications
After evaluating the performance of AGM and lithium batteries across various parameters, it's essential to assess their suitability for specific applications.
Not all batteries are universally suitable, and certain models may excel in particular scenarios. Let's delve into the specific applications where AGM and lithium batteries are ideally suited:
Leisure Batteries
When selecting leisure batteries for motorhomes or caravans, LFP batteries are strongly recommended. In the RV battery market, consumers prioritize factors such as deep cycle life, safety, and minimal maintenance. Lithium leisure batteries, especially those using lithium iron phosphate (LFP) technology, excel in meeting these criteria. For motorhomes integrating lithium batteries, dedicated battery chargers are preferred over built-in chargers to ensure optimal performance.
Marine Batteries
Traditional liquid or gel batteries are not ideal for marine applications due to their susceptibility to movement, which can affect their effectiveness. In contrast, most lithium batteries are solid-state and do not contain liquids, making them highly compatible with marine environments. Moreover, advanced marine lithium batteries such as the Timeusb Trolling Motor Battery Series are equipped with enhanced Battery Management Systems (BMS) designed specifically for marine settings. These systems enhance reliability by providing resistance against moisture, dust, water, and salt spray, ensuring durability in humid and challenging conditions.
Freezing Conditions
Using batteries in freezing conditions presents challenges, particularly with charging, which can be difficult at low temperatures. AGM batteries excel over lithium batteries in this regard.
However, advanced lithium batteries like Timeusb Lithium’s LFP batteries incorporate a self-heating feature. This capability allows them to operate similarly to AGM batteries even in sub-zero conditions.
Solar Energy Storage
Lithium iron phosphate batteries are ideal for solar energy storage due to their high energy density, deep discharge capabilities, and extended warranty. While a single AGM battery may have a lower initial cost, over its lifespan, a single lithium battery can deliver the performance equivalent to 16 AGM batteries. Hence, for solar storage applications, LFP batteries stand out as the superior choice.
UPS Battery
Similar to the RV battery market, the UPS (Uninterruptible Power Supply) market also favors LFP (lithium iron phosphate) batteries. They feature enhanced safety, require minimal maintenance, and provide greater capacity compared to equivalent AGM batteries, making them a more convenient long-term choice for ownership.
The Ultimate Decision
When comparing lithium and AGM batteries, each demonstrates unique advantages and drawbacks. However, when prioritizing a reliable, efficient, and lightweight maintenance-free solution, the optimal choice becomes clear. Lithium batteries emerge as the superior option for your application. Their enhanced performance, extended lifespan, and integrated Bluetooth technology provide substantial ease and convenience. Furthermore, they can ultimately save you valuable time and money.
